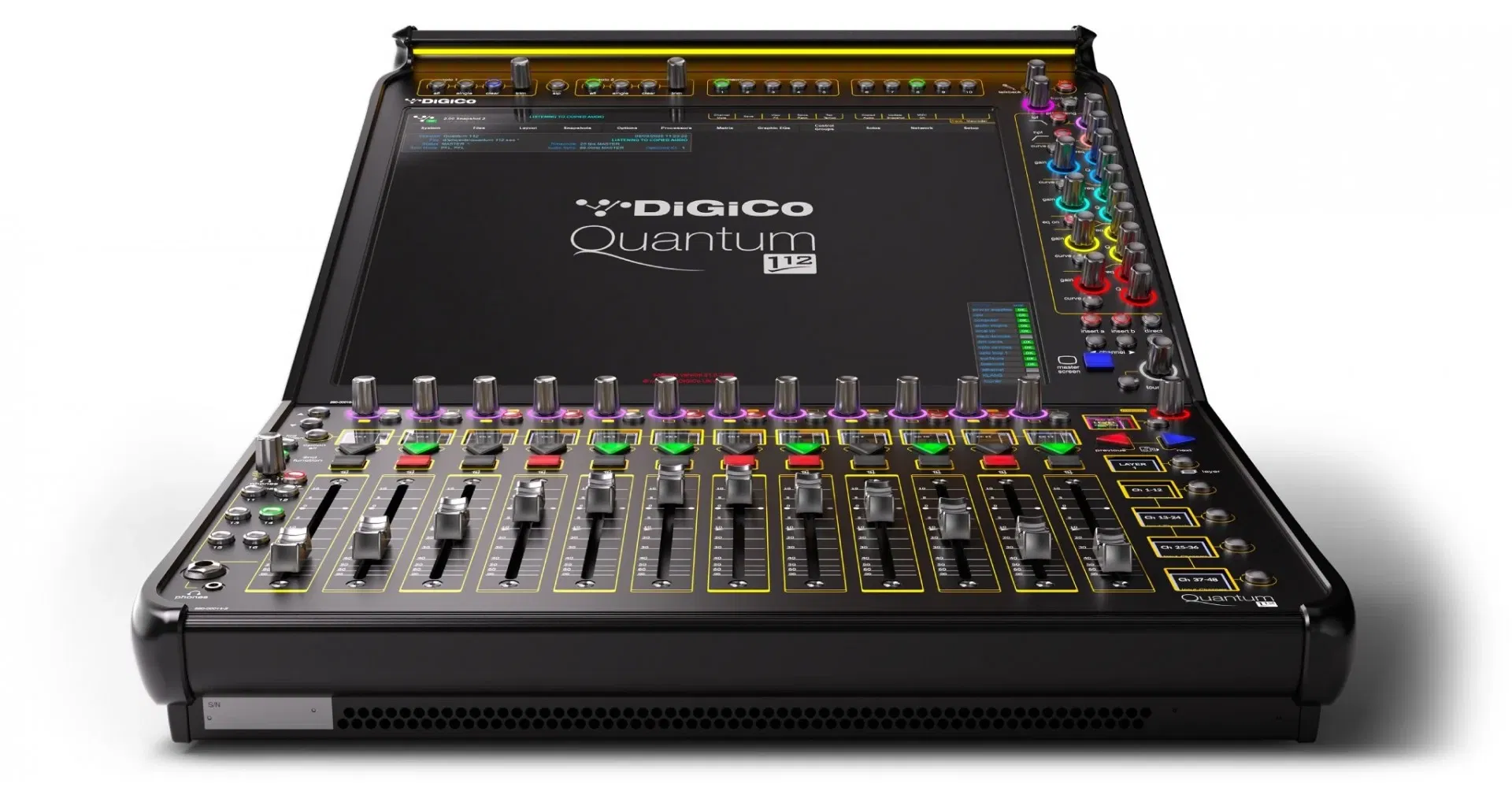

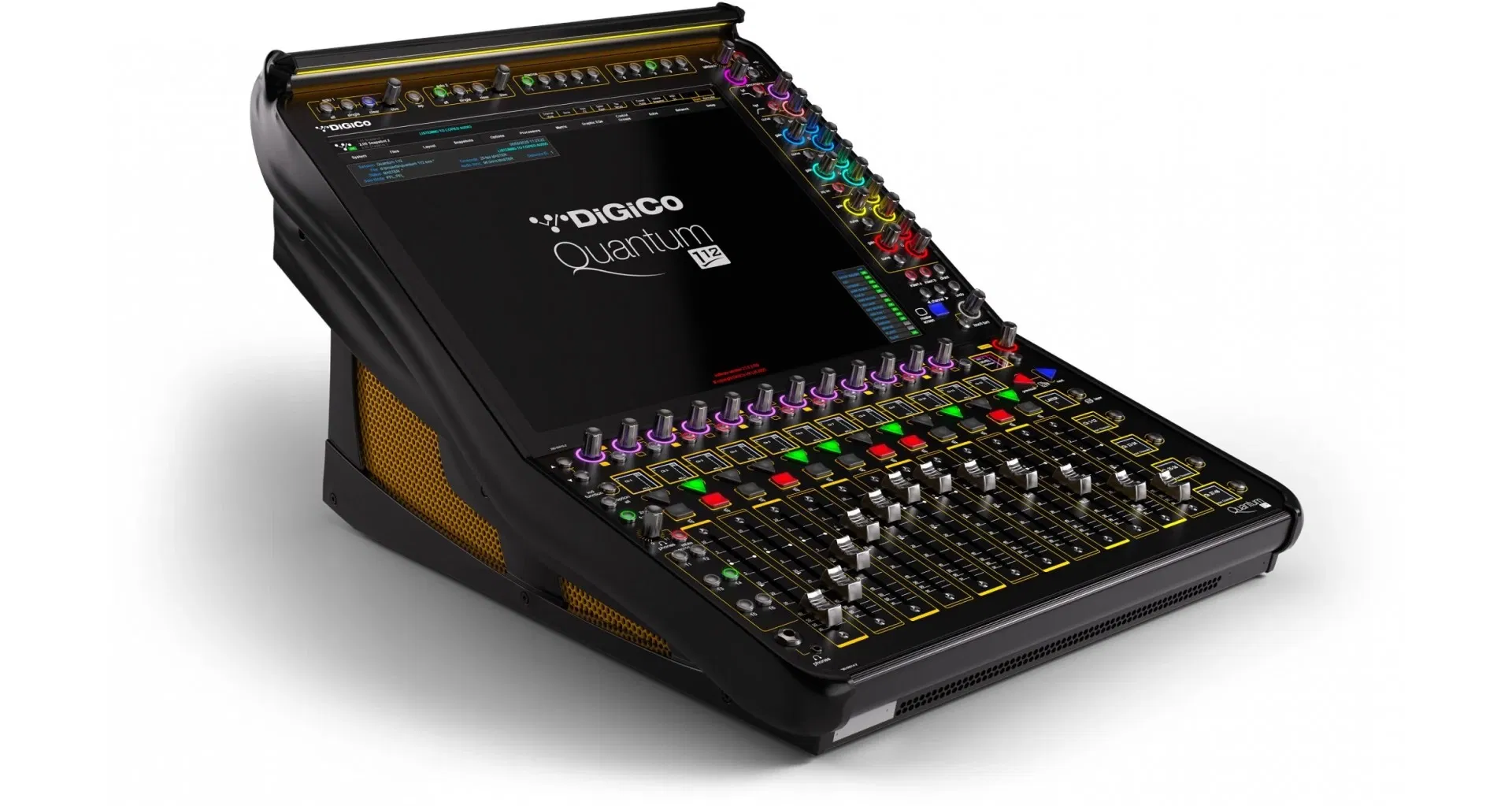

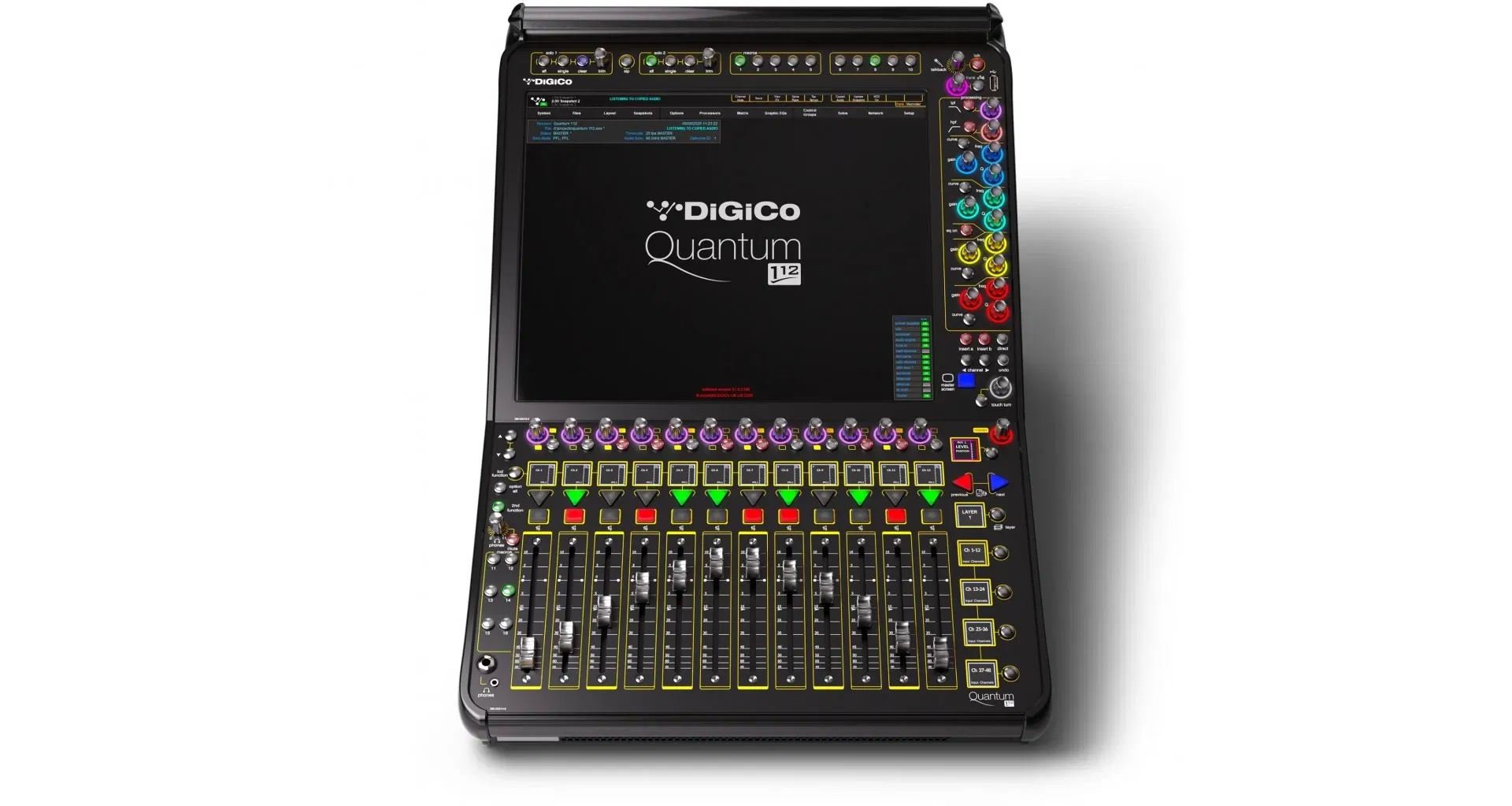

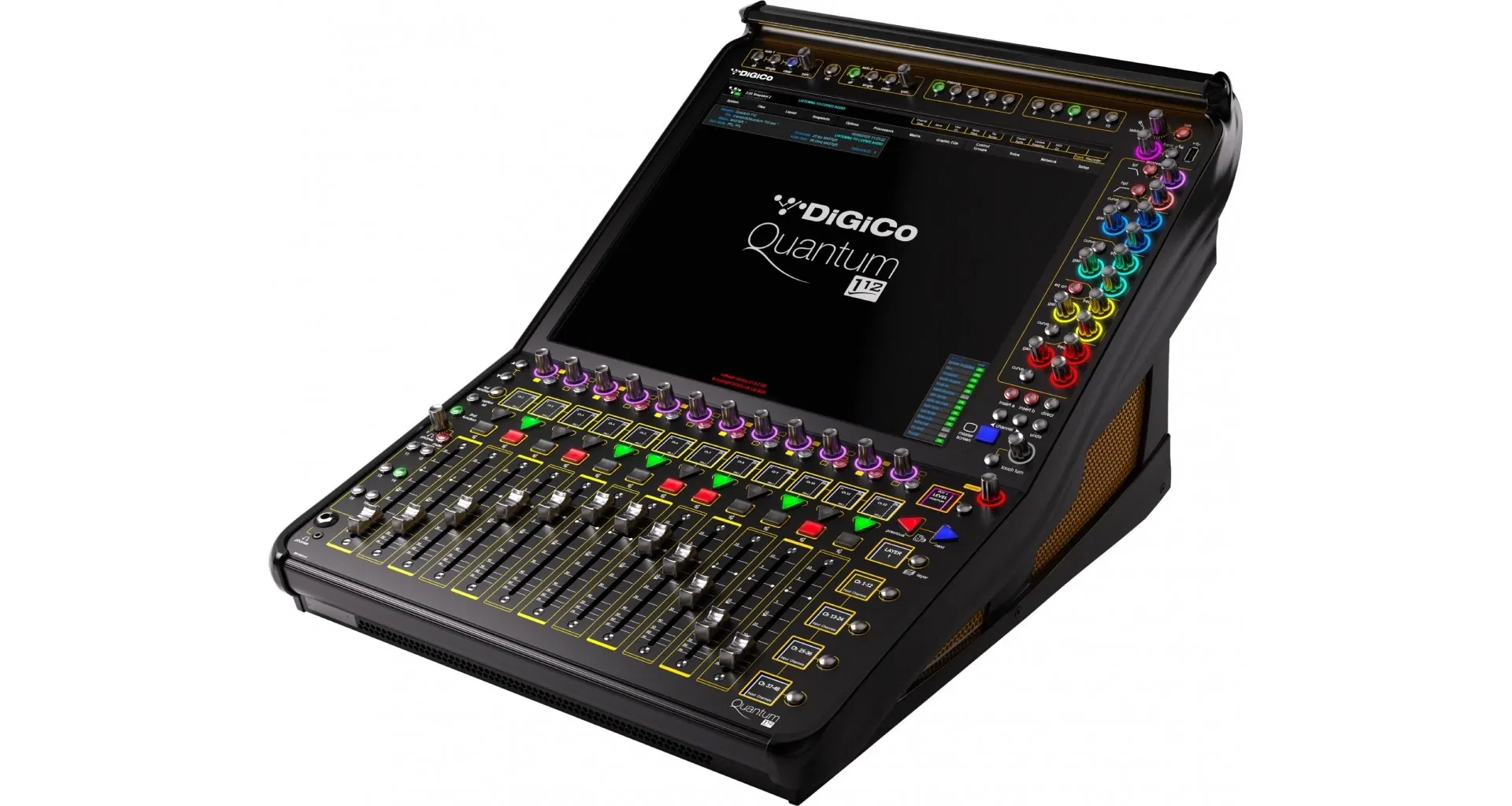

DiGiCo Quantum 112

DiGiCo Quantum 112:

Caracteristici generale:

• 80 canale de intrare cu procesare completa
• 24 bus-uri Aux/Sub-Group cu procesare completa
• Matrici 12 x 8 cu procesare completa
• 8 Control Groups
• 20 strip-uri Mustard
• 6 Spice Racks
• 139 Dynamic EQ
• 115 Digitubes
• 8 efecte digitale

Specificatii tehnice:

Specificatii generale:

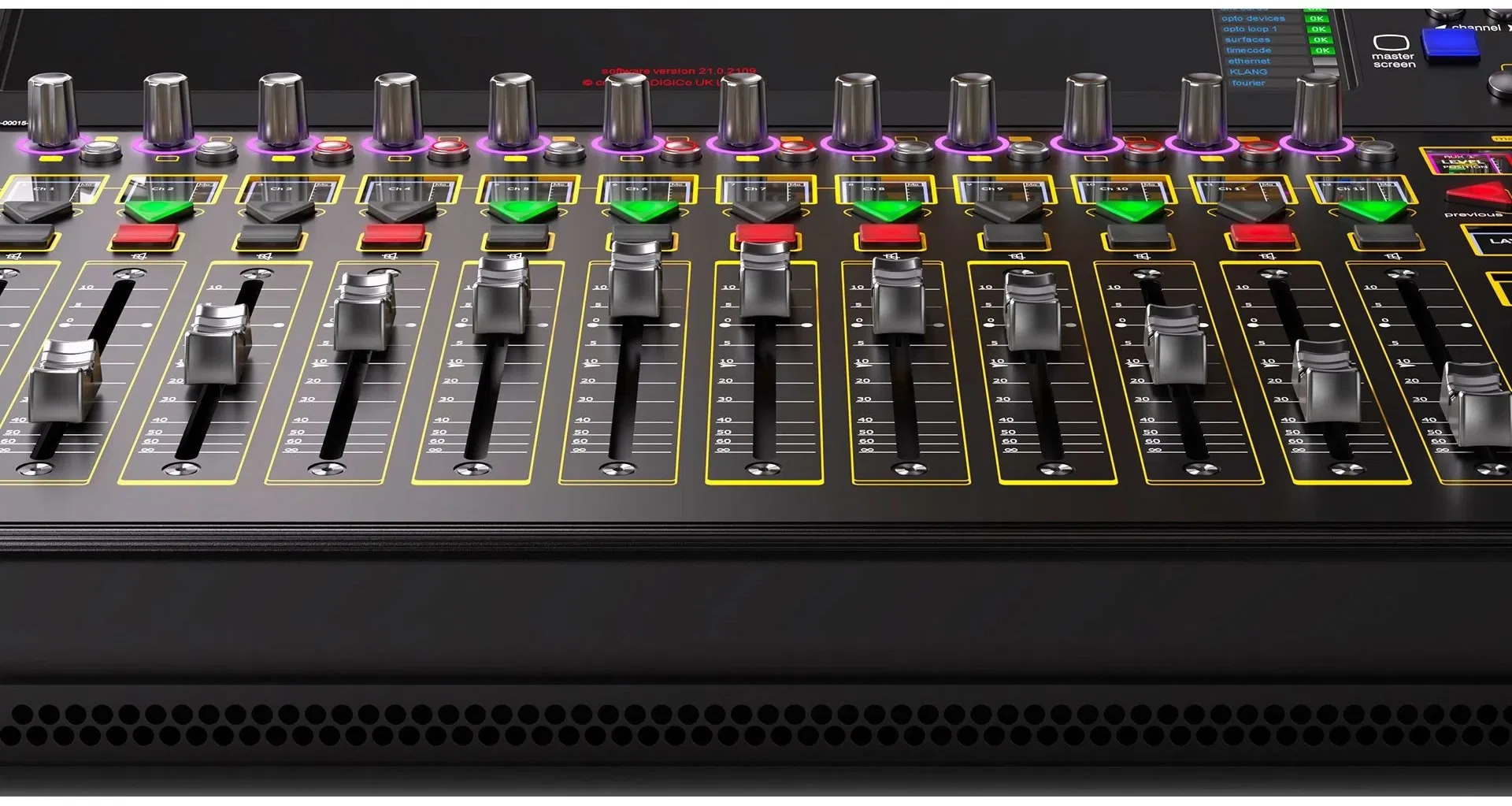

• Fadere: 12 x 100mm motorizate, sensibile la atingere
• Ecran: 1 x 17" LCD touchscreen, luminozitate ridicata, rezolutie mare
• Ecrane TFT: 18 x afisaje TFT color
• Redundanta: 2 surse interne de alimentare
• Canale de intrare: 80 (mono)
• 2 bus-uri Solo
• Matrici: 12 intrari x 8 iesiri cu procesare completa
• 8 Control Groups (CGs)
• Egalizator grafic: 12 x 32 benzi
• Efecte interne: 6
• Spice Rack: 6 sloturi interne
• Benzi Mustard: 20
• Procesare Nodala: 24 benzi EQ parametric / EQ dinamic
• Stadius 32-bit local I/O
• MADI: pana la 4 interfete / 2 redundante la 48kHz / 2 la 96kHz
• Interfata Optocore MultiMode (optional)
• Rata de esantionare: 48kHz sau 96kHz
• GPI: 2 jack-uri (2 intrari)
• GPO: 2 jack-uri (2 iesiri)
• 2 sloturi DMI (pana la 64 I/O per slot)

Specificatii audio:

• Rata de esantionare: 48kHz sau 96kHz
• Intarziere procesare: 0.5ms tipic (Mic in → Line out, fara procesare)
• Procesare interna: pana la 40-bit, Floating Point
• Conversie A>D si D>A: 32-bit
• Raspuns in frecventa: +/- 0.2dB (20Hz - 20kHz)
• THD+N (Mic In → AES Out): <0.002% @ 1kHz, 0dB gain, -10dBFS out, 22Hz-20kHz
• THD+N (AES In → Line Out): <0.002% @ 1kHz, +16dBu out, 22Hz-20kHz
• Separare canale/Crosstalk (Mic In → Line Out): >100dB @ 10kHz
• Zgomot rezidual de iesire: <93dBu tipic (20Hz-20kHz)
• EIN (Equivalent Input Noise): <-127.5dBu A-weighted, 22Hz-20kHz
• Nivel maxim de iesire: +22dBu
• Nivel maxim de intrare: +22dBu

Specificatii canal de procesare - Canal de intrare:

• 80 canale de intrare (mono)
• Procesare Mustard si SD disponibile pe toate canalele
• Intrare principala si alternativa
• Gain analogic
• Control de inversare faza
• Gain Tracking
• Trim digital: -40dB pana la +40dB
• Intarziere variabila: 0ms pana la 1.3s
• DiGiTube
• HPF/LPF: -24dB/Oct
• EQ parametric 4 benzi / EQ dinamic
• DYN 1: Compresor, Compresor Multiband, De-esser
• DYN 2: Gate, Duck, External Input Compressor
• Control ordine EQ/Dyn
• 2 puncte de insert per canal
• Mute & Hard Mute
• Iesiri directe pe canal

24 bus-uri Aux/Sub-Group:

• Trim digital: -20dB pana la +60dB
• Intarziere variabila: 0ms pana la 1.3s
• DiGiTube
• Merge Input
• Generator de ton
• HPF/LPF: -24dB/Oct
• EQ pe 8 benzi: 4 benzi parametric si 4 benzi parametric sau dinamic
• DYN 1: Compresor, Compresor Multiband, De-esser
• DYN 2: Gate, Duck, External Input Compressor
• Control ordine EQ/Dyn
• 2 puncte de insert per canal
• Mute & Hard Mute
• Matrici: 12 intrari x 8 iesiri cu procesare completa
• 12 Control Groups (CGs)
• 2 Solo Busses
• 12 egalizatoare grafice pe 32 benzi
• 8 procesoare interne FX stereo: Delays, Audio Enhancer, Choruses, Pitch Shifters, Reverbs
• 6 sloturi interne Spice Rack
• Compresor/Expander multiband dinamic pe 6 benzi
• EQ dinamic pe 6 benzi

Mustard Processing

• 20 benzi Mustard Processing
• Tube
• Emulare Tube
• HPF/LPF: -24dB/Oct
• EQ pe 4 benzi: 2 parametric si 2 parametric sau All Pass Filters
• DYN 1: Compresor RMS/Peak clasic, Compresor VCA vintage, Compresor optic, FET Limiter
• DYN 2: Gate, Ducker
• 24 benzi Nodal Processing EQ parametric / EQ dinamic
• DYN 1: Compresor, Compresor Multiband, De-esser
• DYN 2: Gate, Duck, External Input Compressor
• Compresoare Multiband disponibile pe fiecare canal, bus si procesor nodal
• EQ dinamic disponibil pe fiecare canal, bus si procesor nodal
• DiGiTuBes disponibile pe fiecare canal si bus
• Virtual Soundcheck
• Functie True Solo
