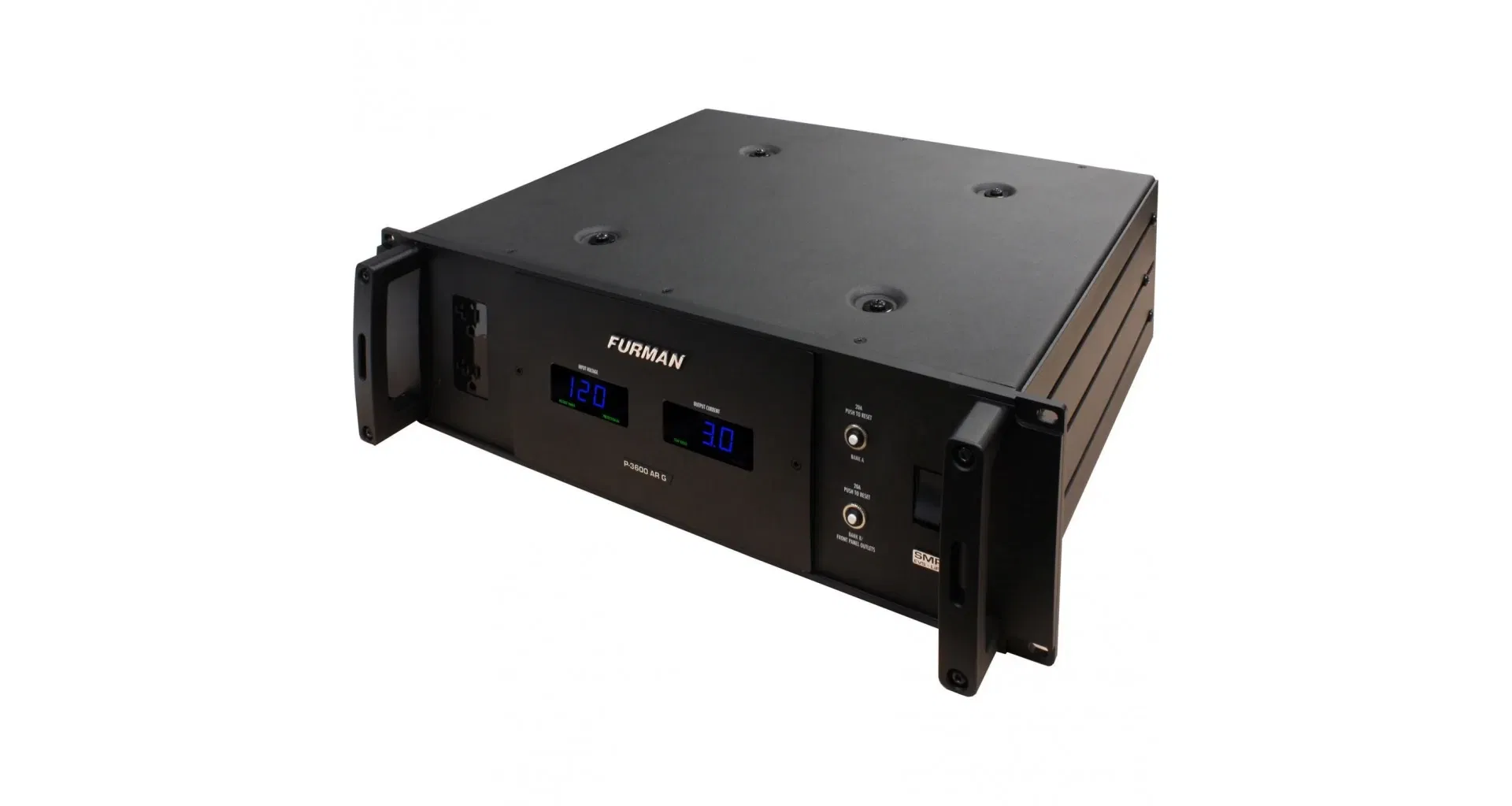

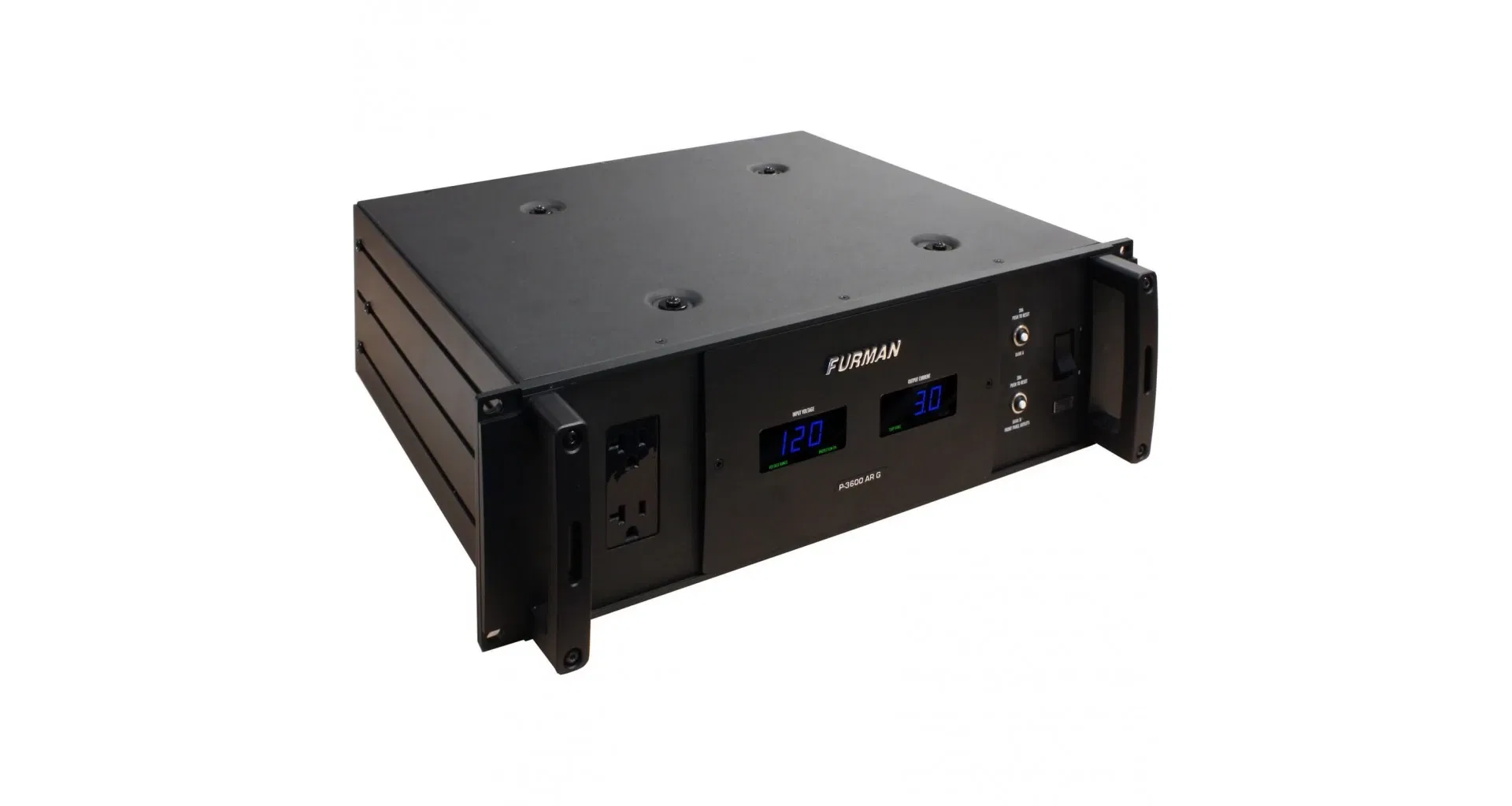

Furman P-3600 AR G

Furman P-3600 AR G:

Aparatul furnizeaza echipamentului conectat de 120V cu tensiune stabila, protectie electrica si filtrare AC, ideala pentru utilizarea cu angrenaj A / V de 120 V atunci cand calatoriti in tari cu servicii de 100 V, 220 V, 230 V sau 240 V.

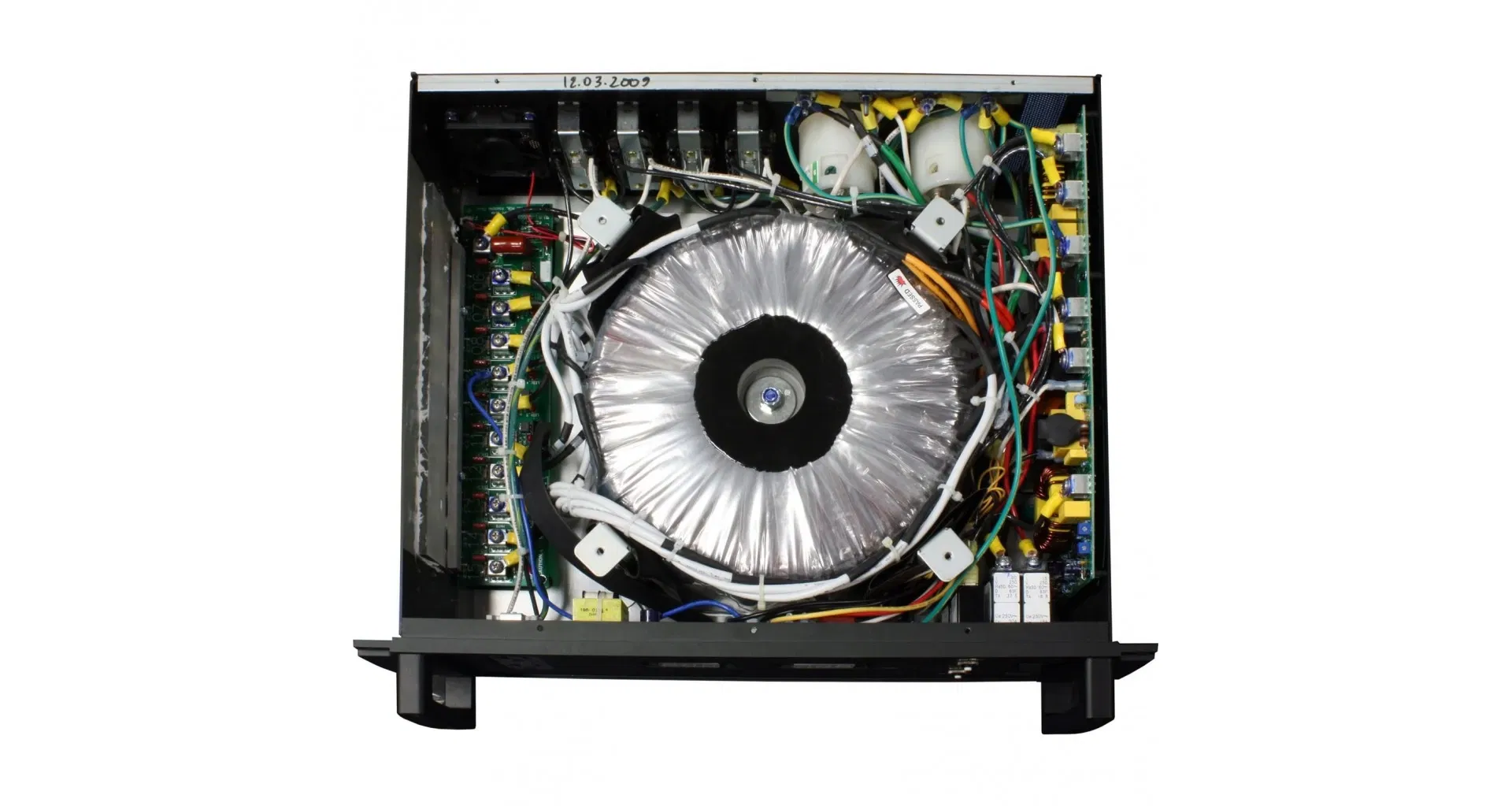

Predecesorul P-3600 AR G, Furman AR-PRO, a fost un produs indispensabil pentru multi utilizatori profesionisti. Modelul actualizat include tehnologia True RMS de la Furman (folosind un transformator / autoformer de izolare torodala ultra-joasa, TRIAC-uri de comutare cu curent ridicat si control de micro-procesare) la tensiuni de intrare pas cu pas sau in trepte. Unitatea ofera, de asemenea, tehnologii exclusive FFT pentru LiFT / SMP / EVS pentru protectia la nivel profesional si pentru filtrarea liniara a zgomotului AC.

Aceste caracteristici, impreuna cu capacitatea de iesire P-3600 AR G de 30A si gama larga de captare a tensiunii de intrare, o fac o solutie unica printre alte regulatoare de tensiune / regulatoare de tensiune portabile si o alternativa fiabila, specifica unei aplicatii tipice sau unei aplicatii alternative step-up/step down.

Specificatii:

Cu iesire regulata de 120 V la sursa de alimentare de 100-127 si 208-240 V
Ocupa 3U in rack
Greutate: 44.5 kg

Functii:

• Global True RMS Voltage Regulation
  • Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
• Surge Protection
  • Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
• Noise Filtration
  • LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
• Voltage Protection
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
• Diagnostic Lights
  • LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
• Large LED Voltmeter
  • Large LED voltmeter displays incoming line voltage.
• Large LED Ammeter
  • Large LED ammeter displays output current draw.
• 30 Amp Rating
  • 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
• 11 Total Outlets
  • 11 total outlets (nine rear panel outlets and two front panel convenience outlet).

Specificatii:

General
    •    FamilyPrestige Series
    •    Line Voltage120 (Volts)
    •    Number of Outlets11
    •    Number of Isolated Banks0

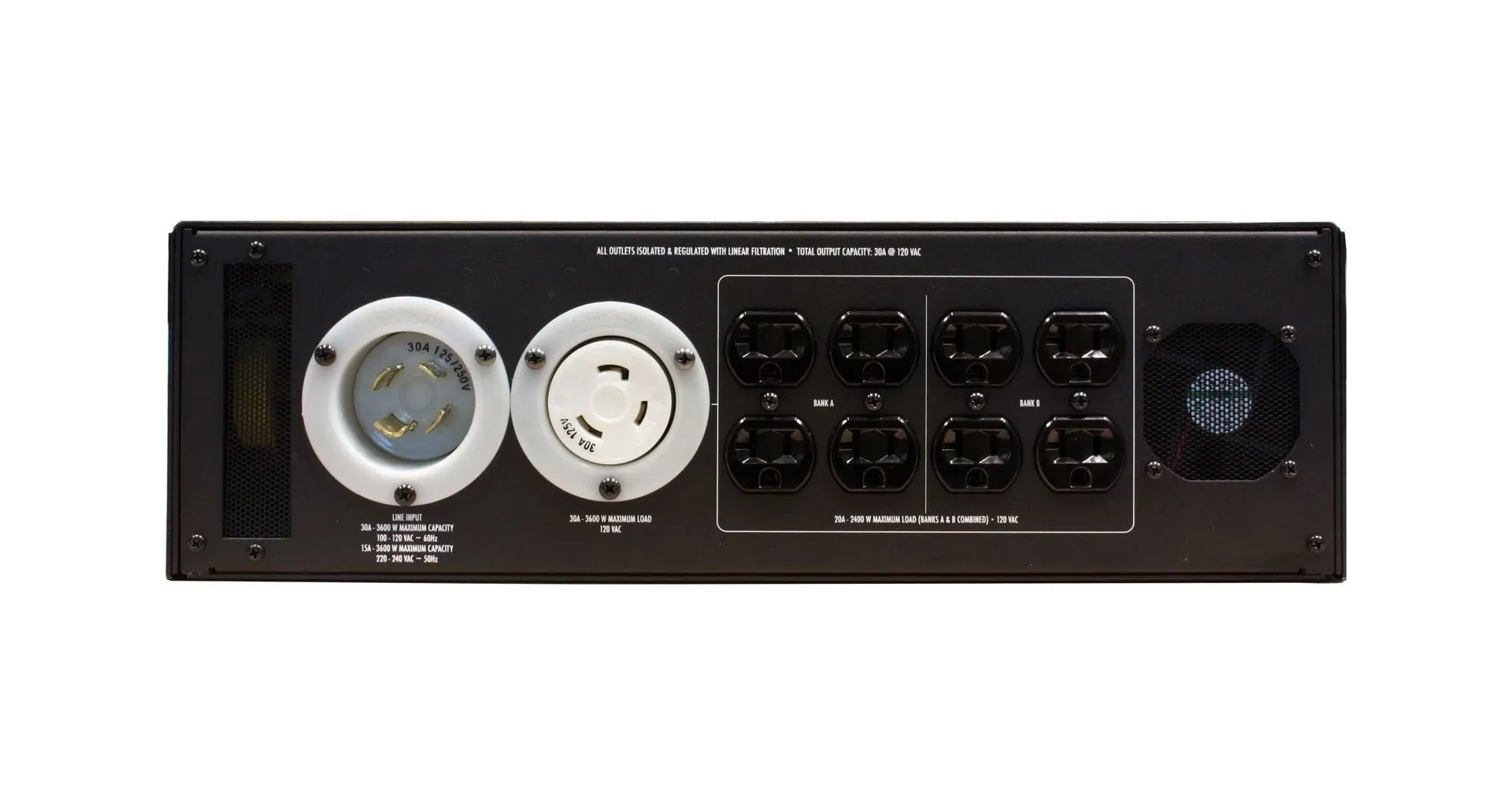

    •    Outlet DescriptionsAll 11 outlets regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30amp outlet. 2 front panel 20 amp convenience outlets.
    •    Rack MountableYes
    •    Rack Ears IncludedYes

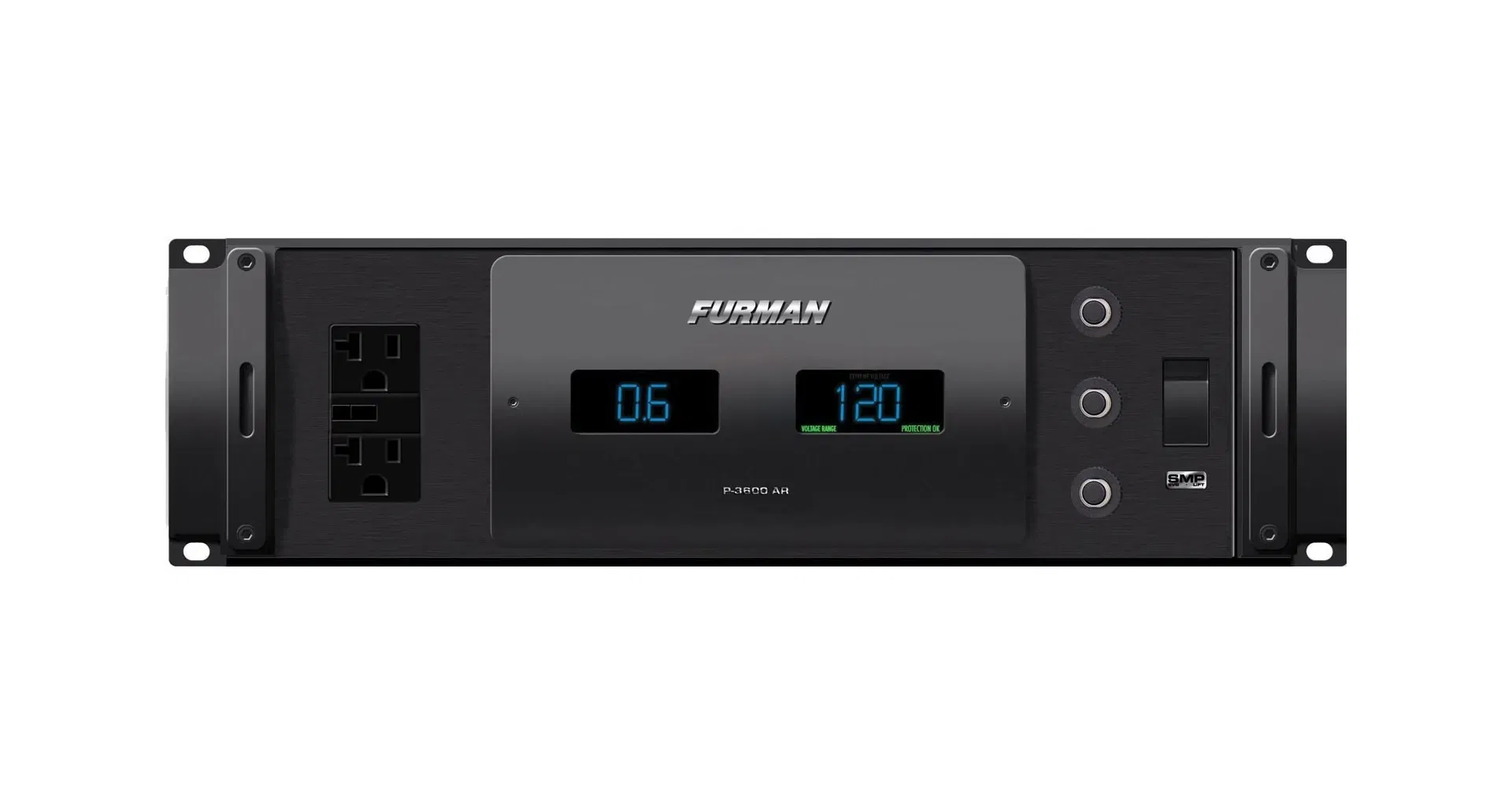

    •    Front Panel Meter(s)LED voltmeter displays incoming line voltage, LED ammeter displays output current draw.
    •    Front Media Light(s)No
    •    ControlFront panel:
- On/Off switch
- Outlet bank reset buttons
    •    Voltage Regulation  Regulation capture range:
(LOW) 88-133 VAC @ 50/60Hz
(HIGH) 170-265 VAC @ 50/60Hz
    •    CompliancecTUVus
    •    USB ChargingN/A
    •    Low Voltage TriggerN/A
    •    AC Power CordL-14 male twistlock inlet (twistlock cable-mount connector included)
    •    Dimensions19" W x 14.25" D x 5.25" H
    •    Weight 98 lbs

AC Protection
    •    AC Protection TechnologyGlobal True RMS Voltage Regulation
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
    •    Over-Voltage Shutoff145 VAC Nominal (120VAC Input)
275 VAC Nominal (240VAC Input)
    •    Maximum Current Rating30 (Amps)
    •    Initial Clamping Level191V Peak @ 3,000 Amps

Filtration
    •    Filtration TechnologyLiFT
    •    Filtration Rating
         -10 dB @ 10KHZ
-40 dB @ 100 KHZ
-55 dB @ 500KHZ
    •    Signal Line ProtectionNo

Shipping Info
    •    Length24 (Inches)
    •    Width23 (Inches)
    •    Height13.5 (Inches)
    •    Weight110 (Lbs)
    •    Unit of MeasureEach
    •    UPC654061028215
    •    Master Pack Qty1

Other Specifications
    •    Response Time:1 Nanosecond
    •    Maximum Surge Current:6,500 Amps
    •    AC Input:L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)
