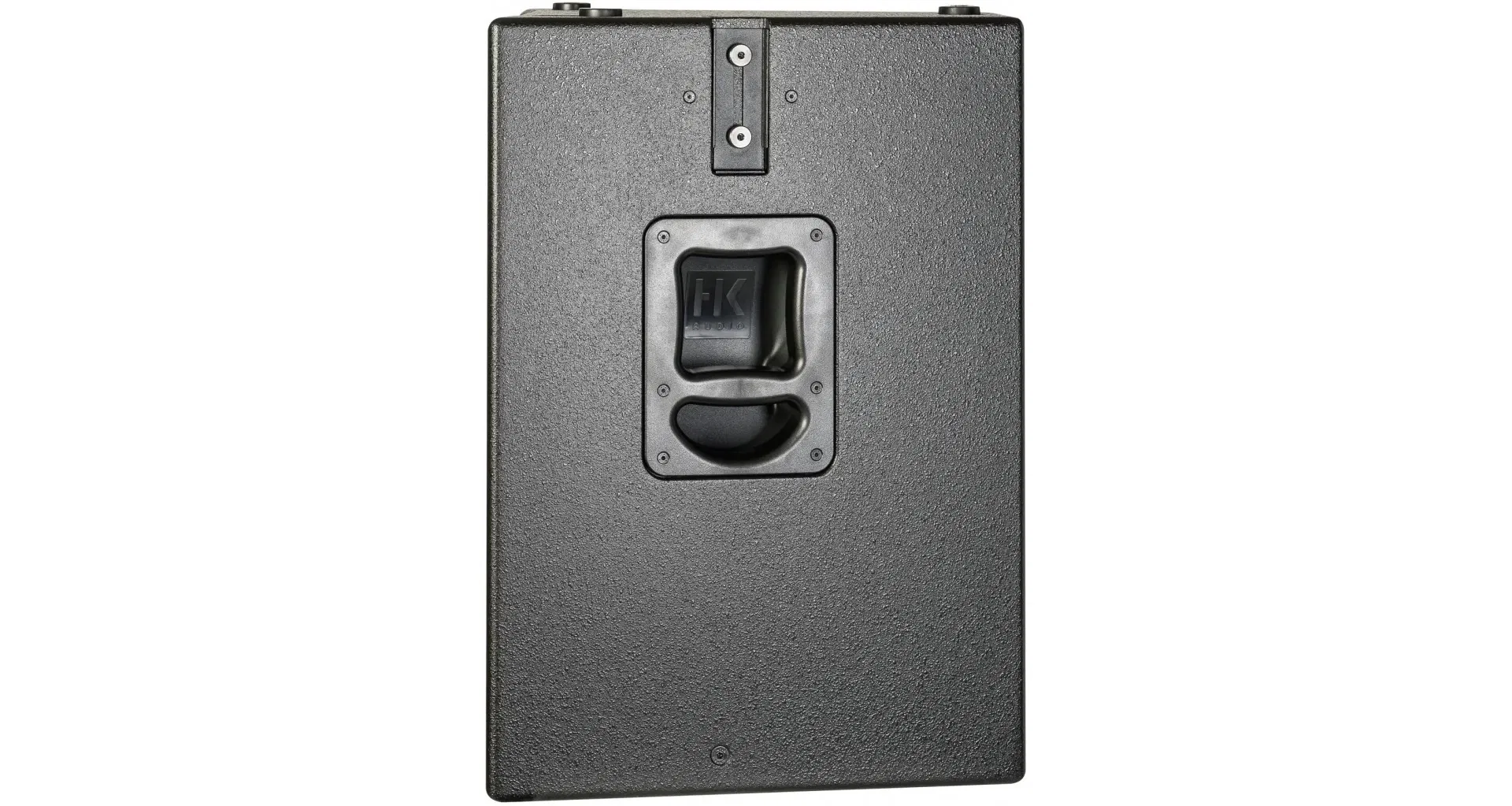

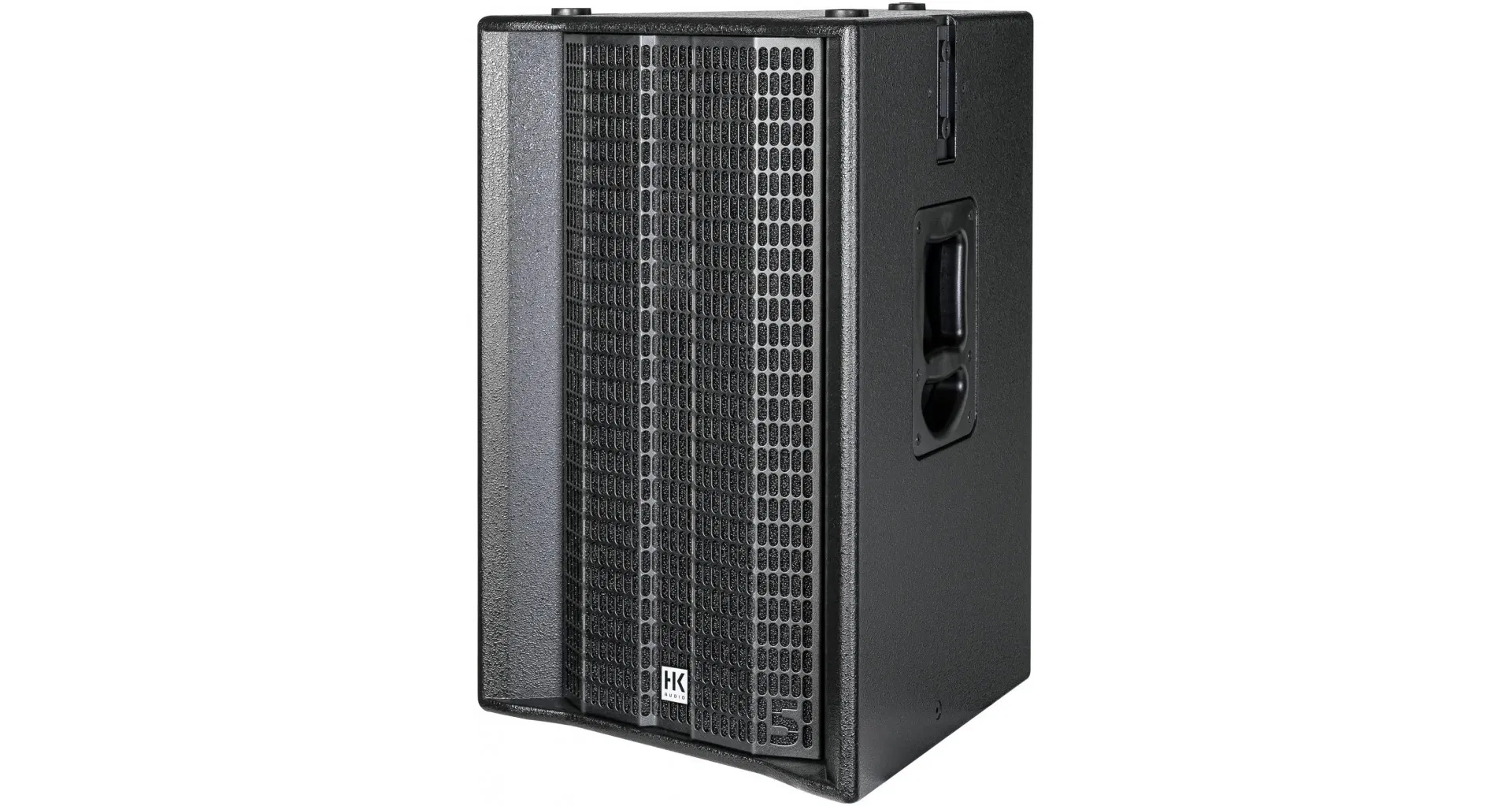

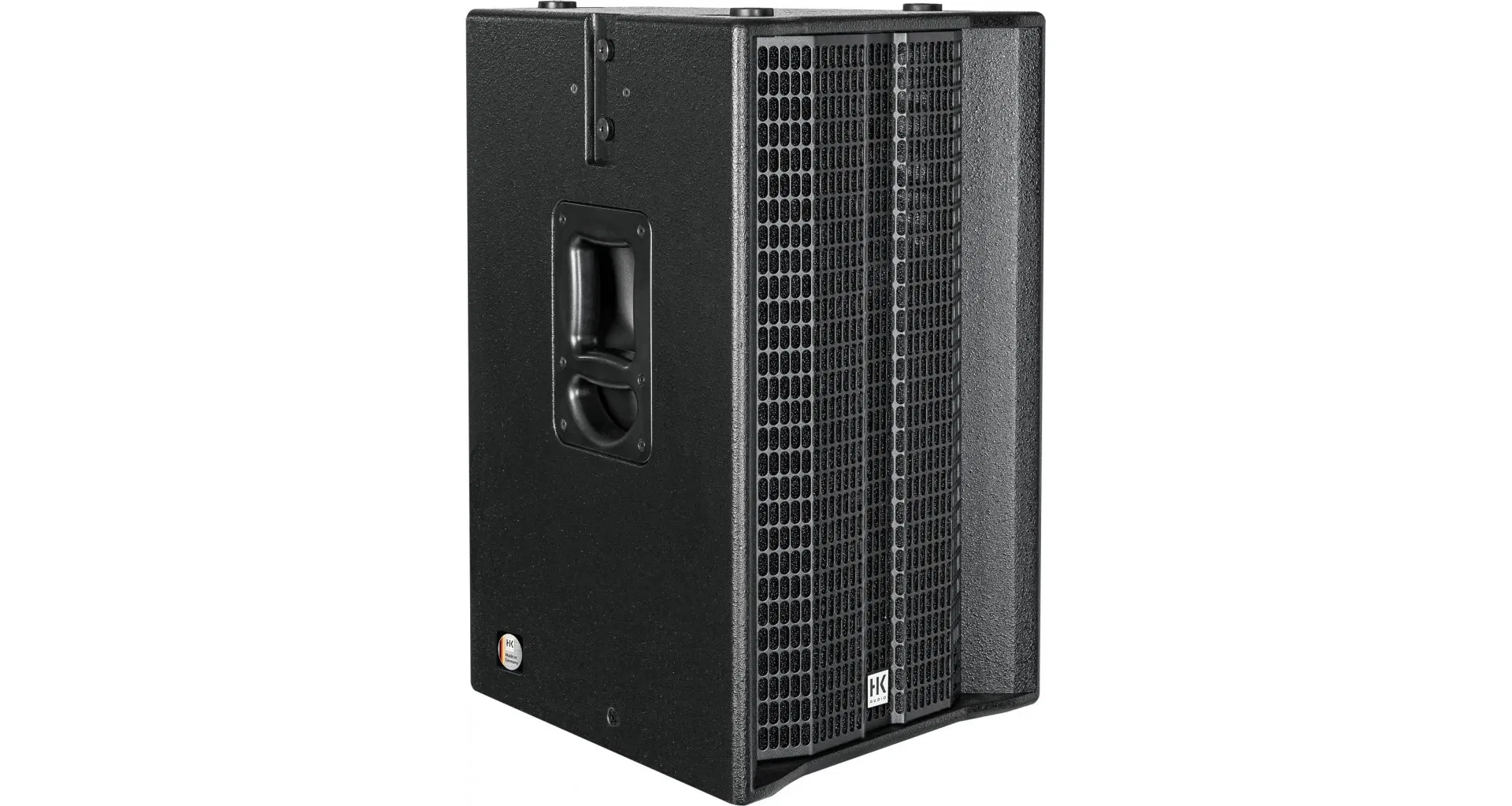

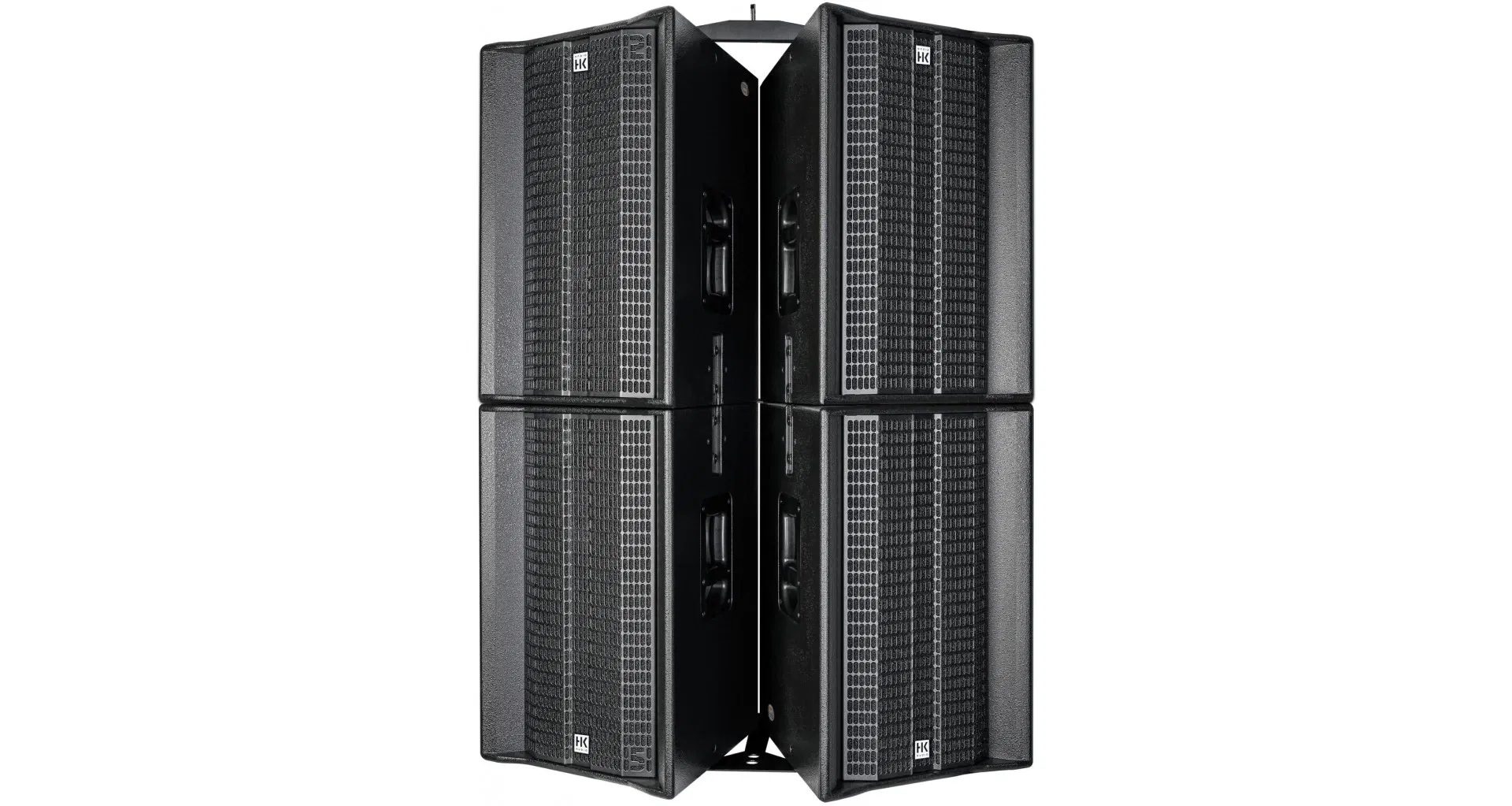

HK Audio LINEAR 5 MK II 308 LTA

HK Audio LINEAR 5 MK II 308 LTA:

• SPL maxim la 10% THD: 133 dB half space (100 Hz - 12 kHz estimat)
• SPL maxim peak la 10 % THD: 138 dB half space
• Raspuns in frecventa +/-3 dB: 105 Hz - 17 kHz
• Raspuns in frecventa -10 dB: 98 Hz - 19 kHz
• Iesire amplificator de putere: 600 W RMS / 1200 W Peak
• Tip amplificare: Clasa D - bi-amplificat
• Difuzor joase/medii: 3 x 8 inch, cu bobina de 1.5 inch
• Difuzor inalte: 1 inch, cu bobina de 1.7 inch
• Acoperire: 60 grade x +5/-25 grade MCT
• Frecventa activa crossover: 1.6 kHz FIR X-over cu 60 dB/oct.
• Nivel maxim de intrare: +20 dBu

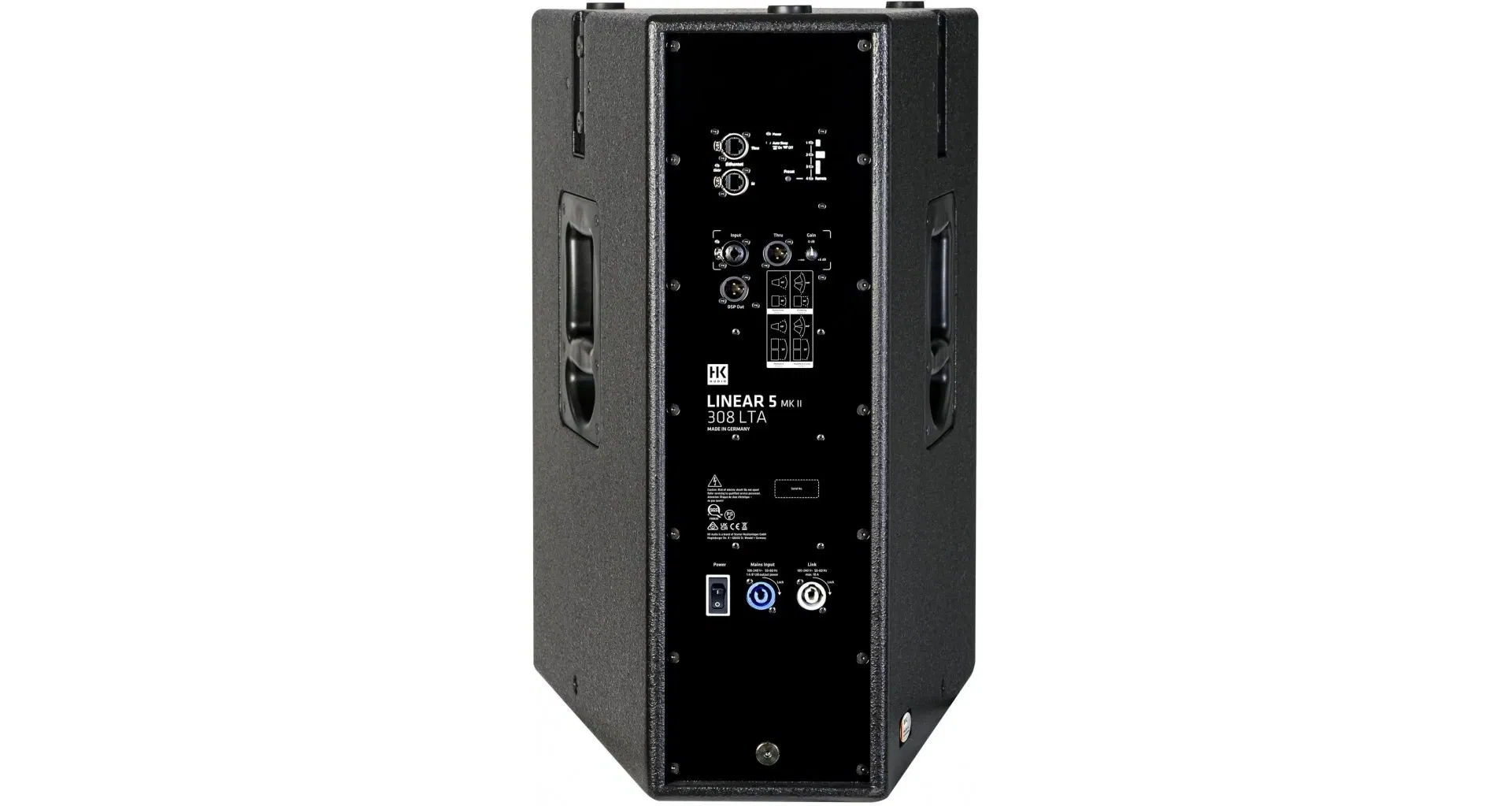

• Conexiuni intrare: 1 x XLR combo balansat
• Conexiune thru: 1 x XLR balansat
• DSP Out: 1 x XLR balansat
• Port de retea: Ethercon RJ45, 1x In, 1x Thru
• Preset-uri de filtre: Single, Cluster, Headstack, Remote
• Software remote: DSP CONTROL (Windows, Mac OS)
• Functii DSP: Egalizator cu 10 benzi complet parametric cu caracteristici de filtru variabile, filtru high-pass, filtru low-pass, polaritate, nivel, delay, limiter, mute
• Rata de esantionare: 48 kHz
• Latenta sistemului: <.= 2.9 ms
• Conexiune alimentare: 1 x intrare Powercon NAC3, 1 x thru Powercon NAC3, 100-240 V
• Consum de curent: 1 A / 100-240 V nominal conform EN 62368-1

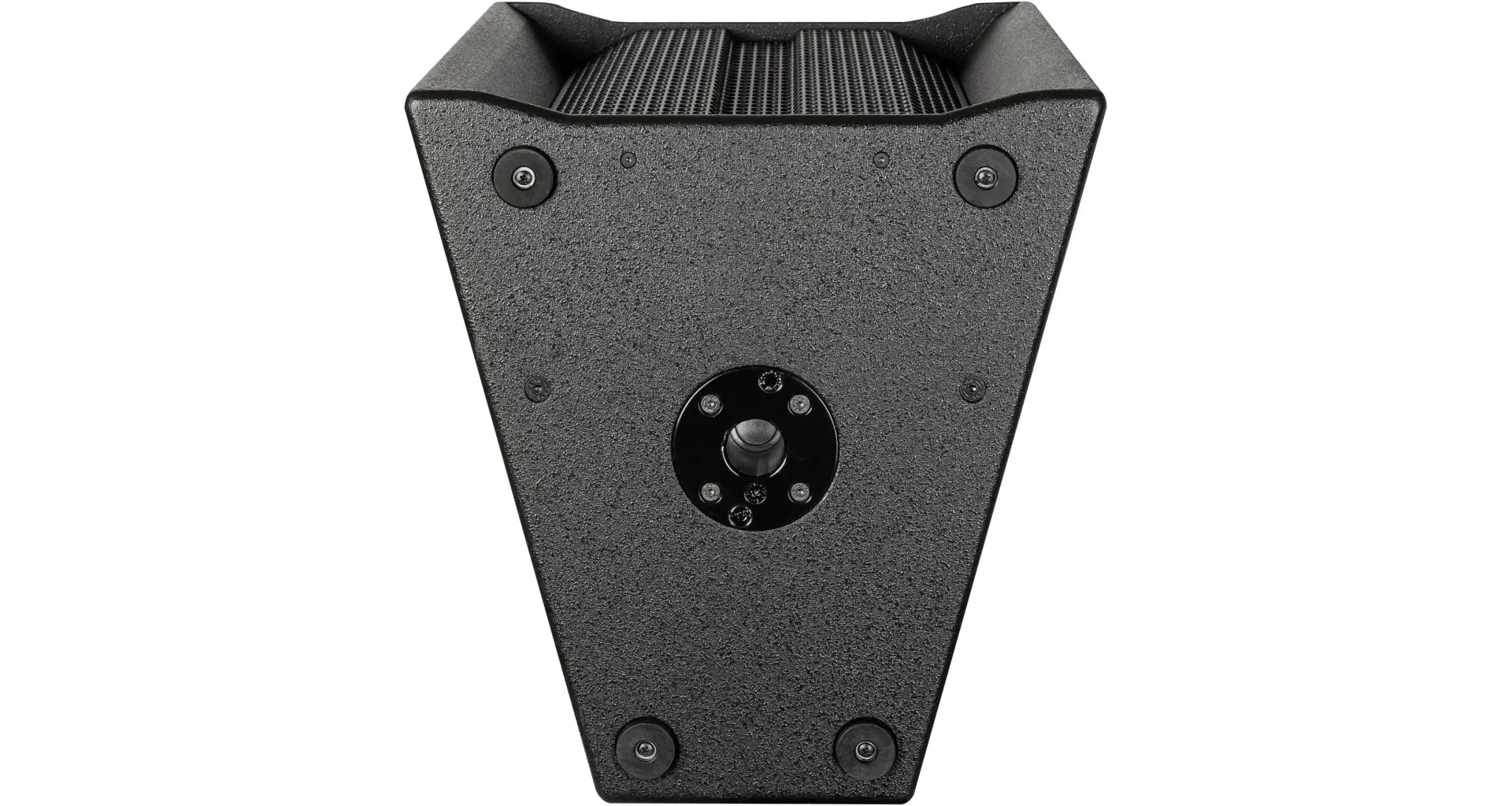

• Montaj pe stativ: MonoTilt 0 grade

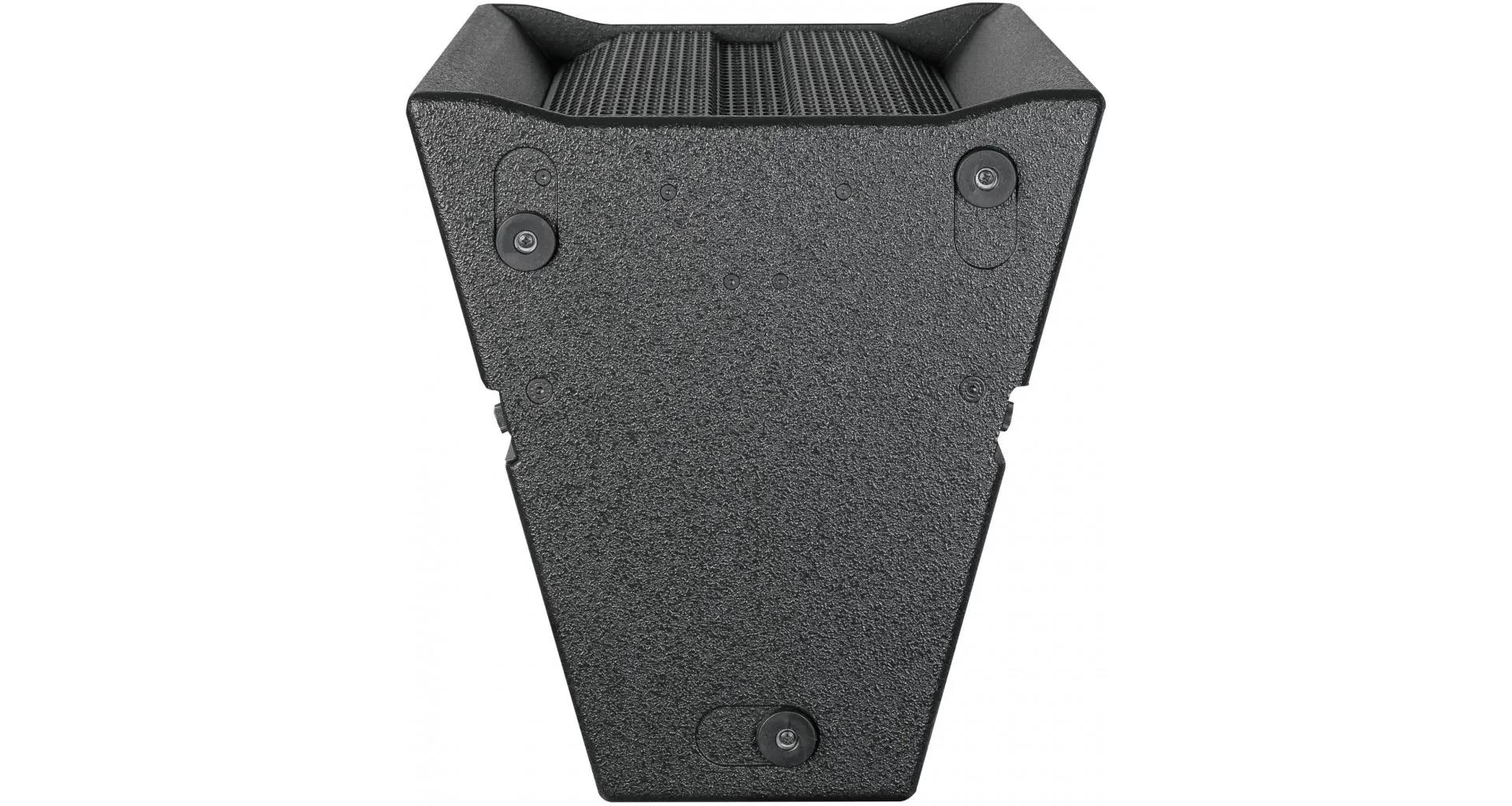

• Puncte de suspendare: 5 x M8 (AP-8)

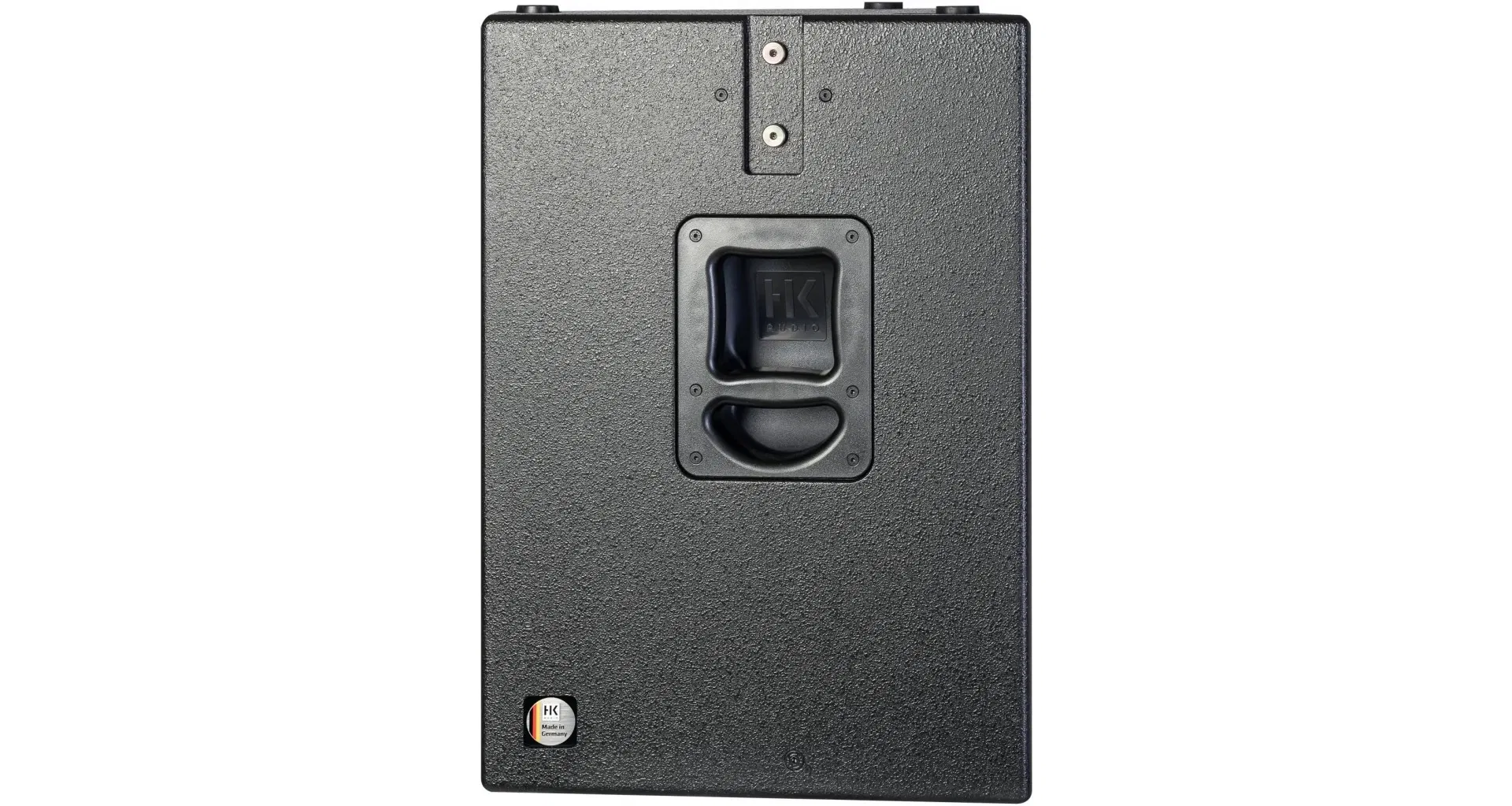

• Manere de transport: 2 x HK Audio MultiGrip
• Cabinet: Multiplex mesteacan
• Finisaj: Email acrilic negru

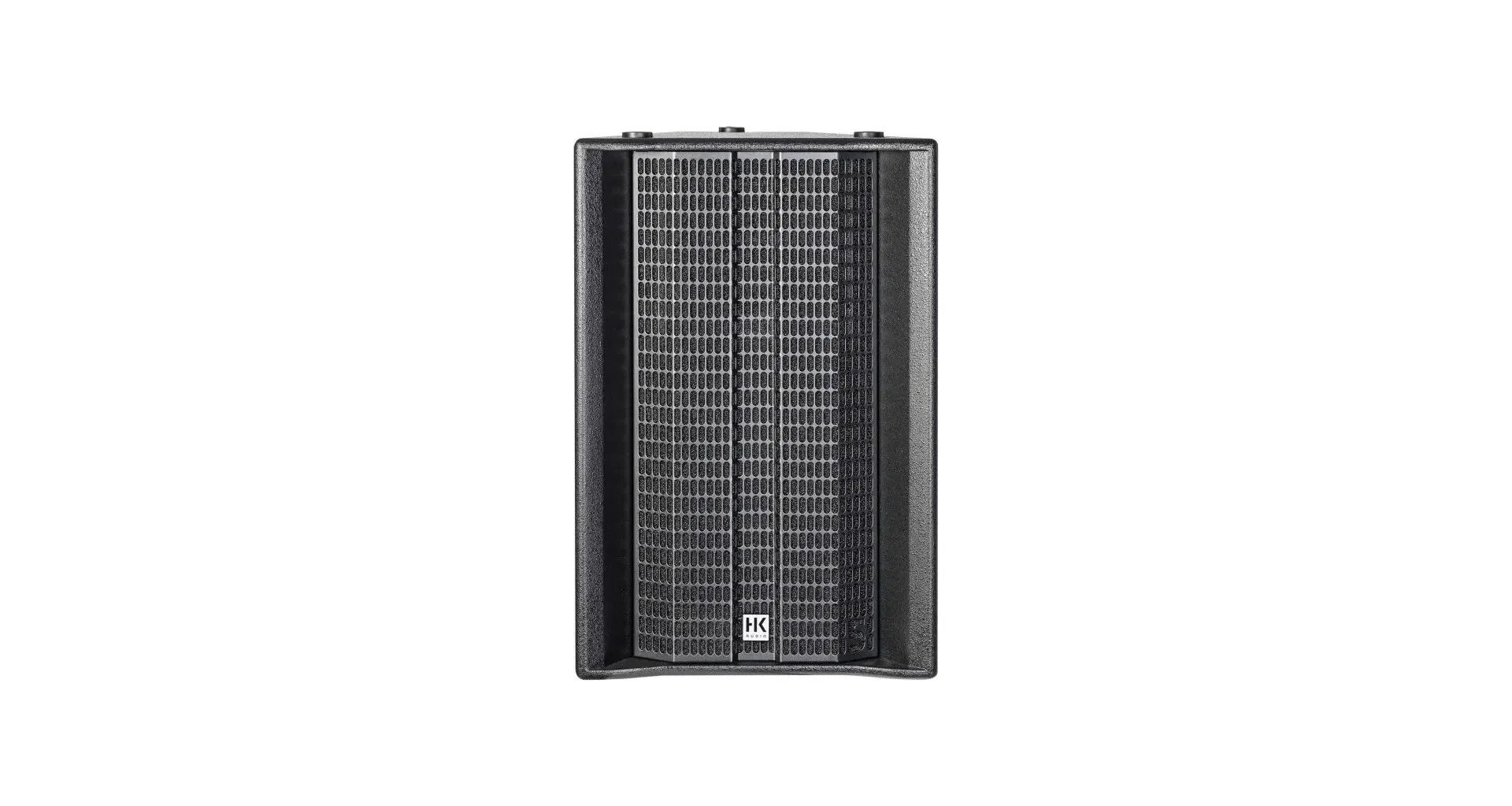

• Grila protectie frontala: Grila metalica de 2 mm cu burete acustic negru
• Dimensiuni: 440 x 680 x 460 mm
• Greutate: 25 kg
