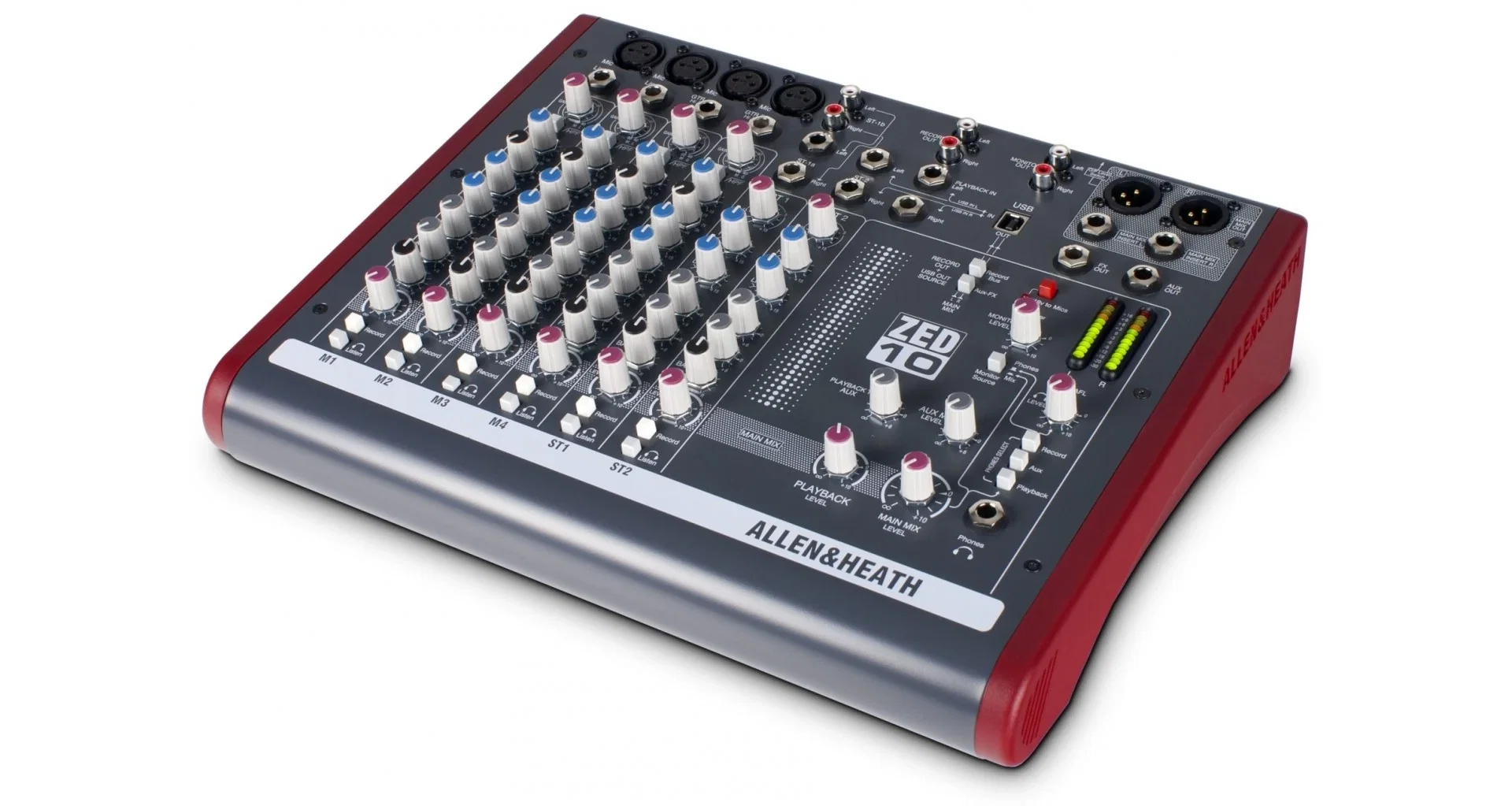

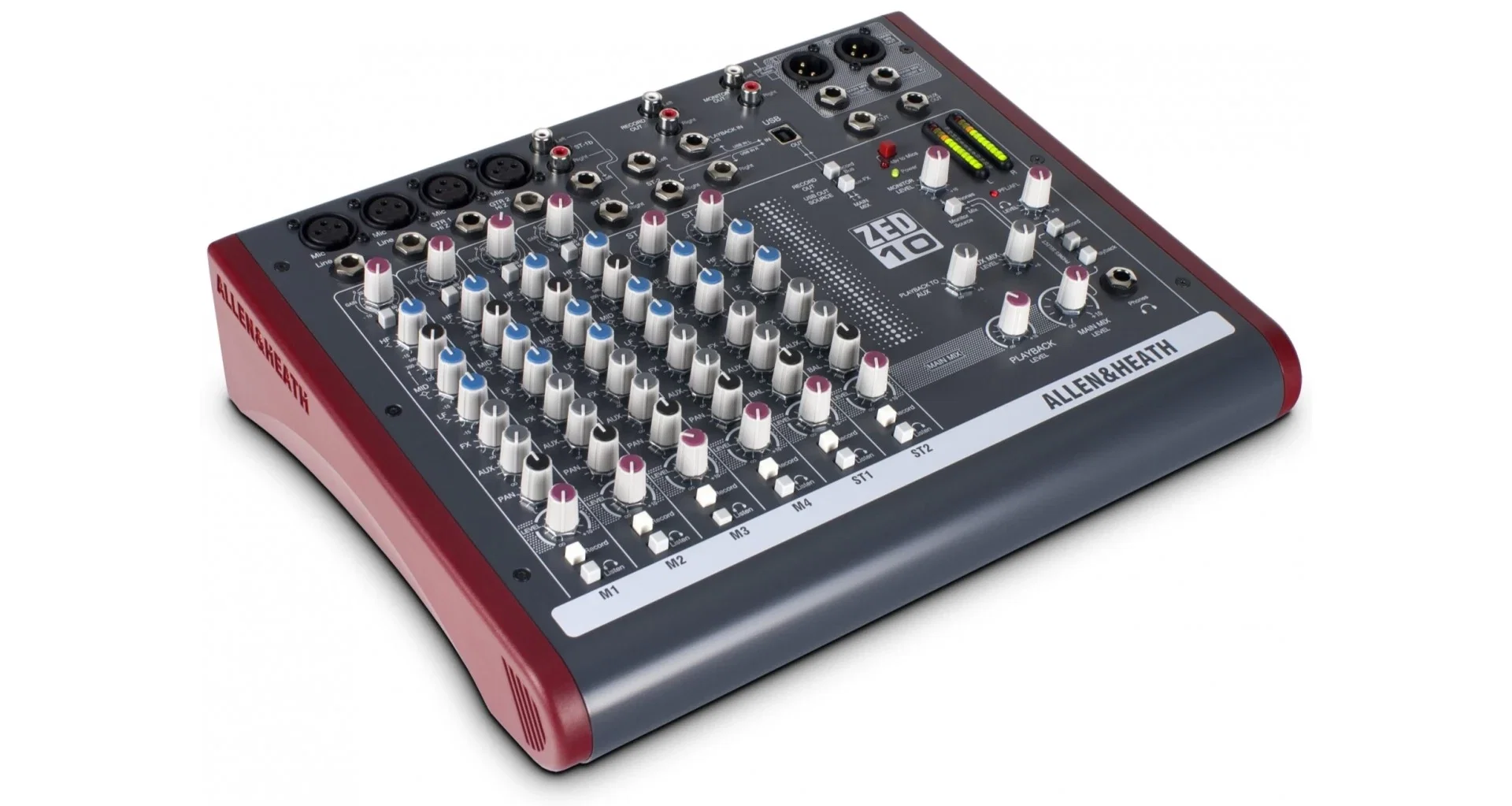

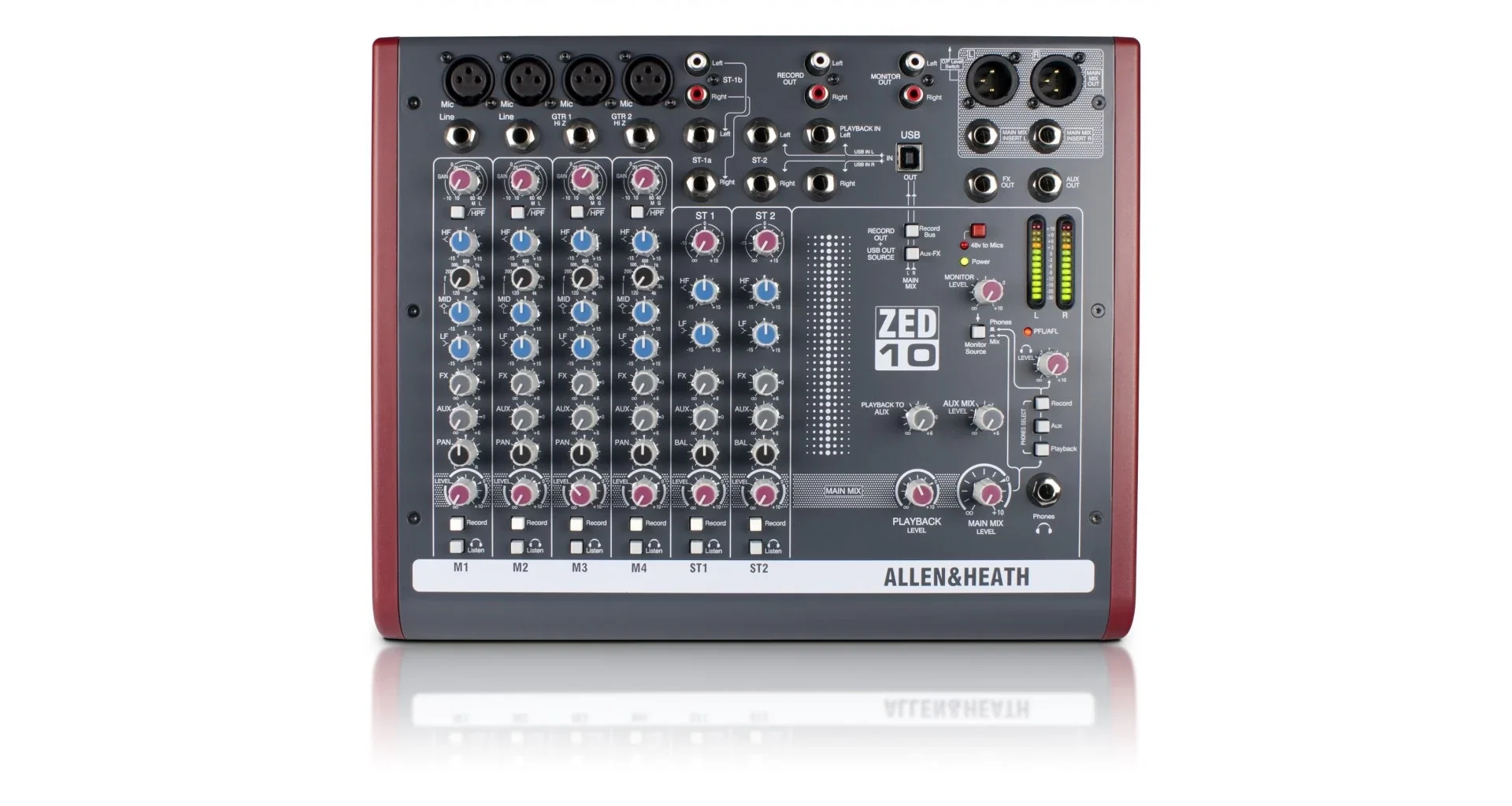

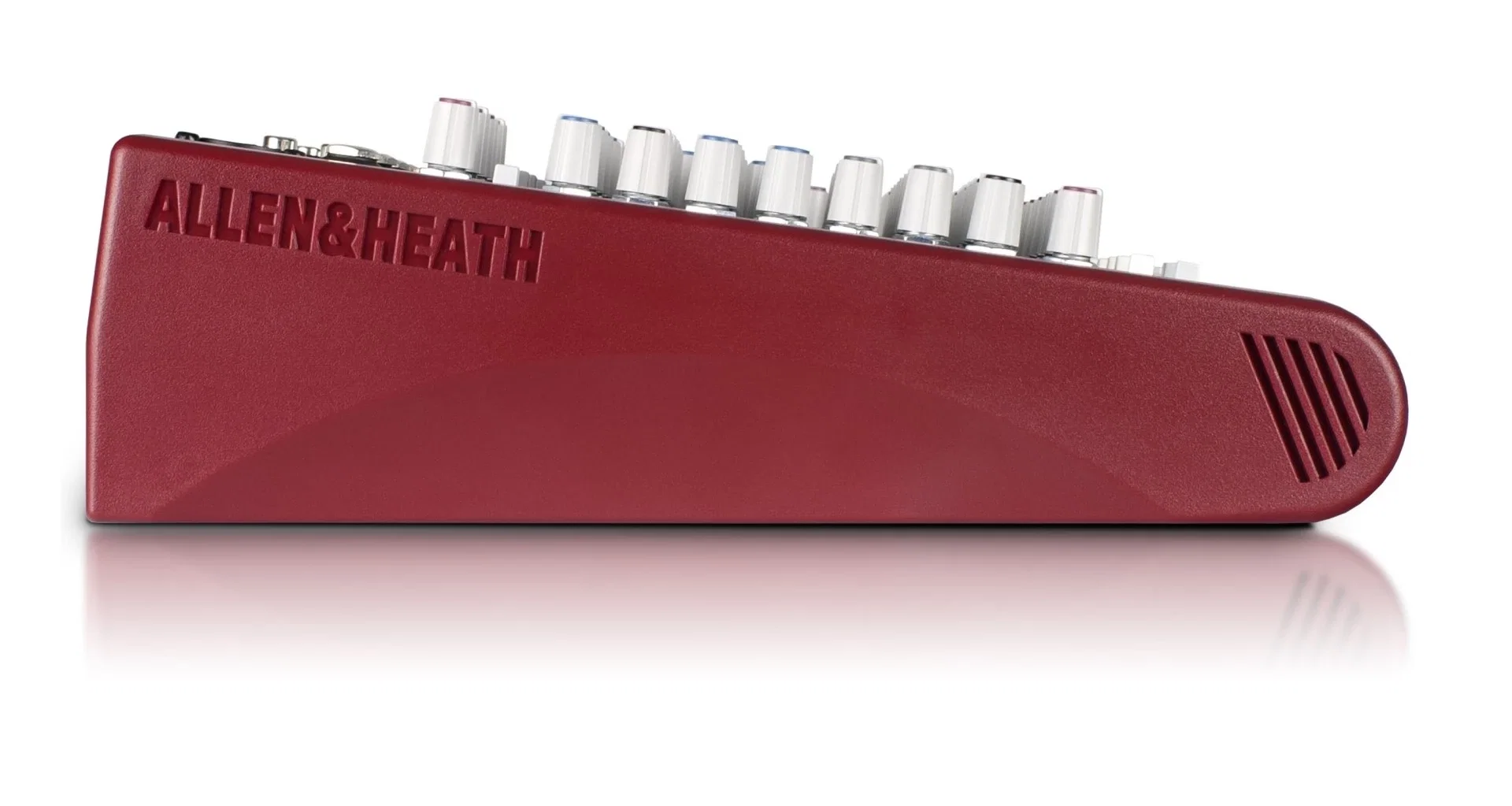

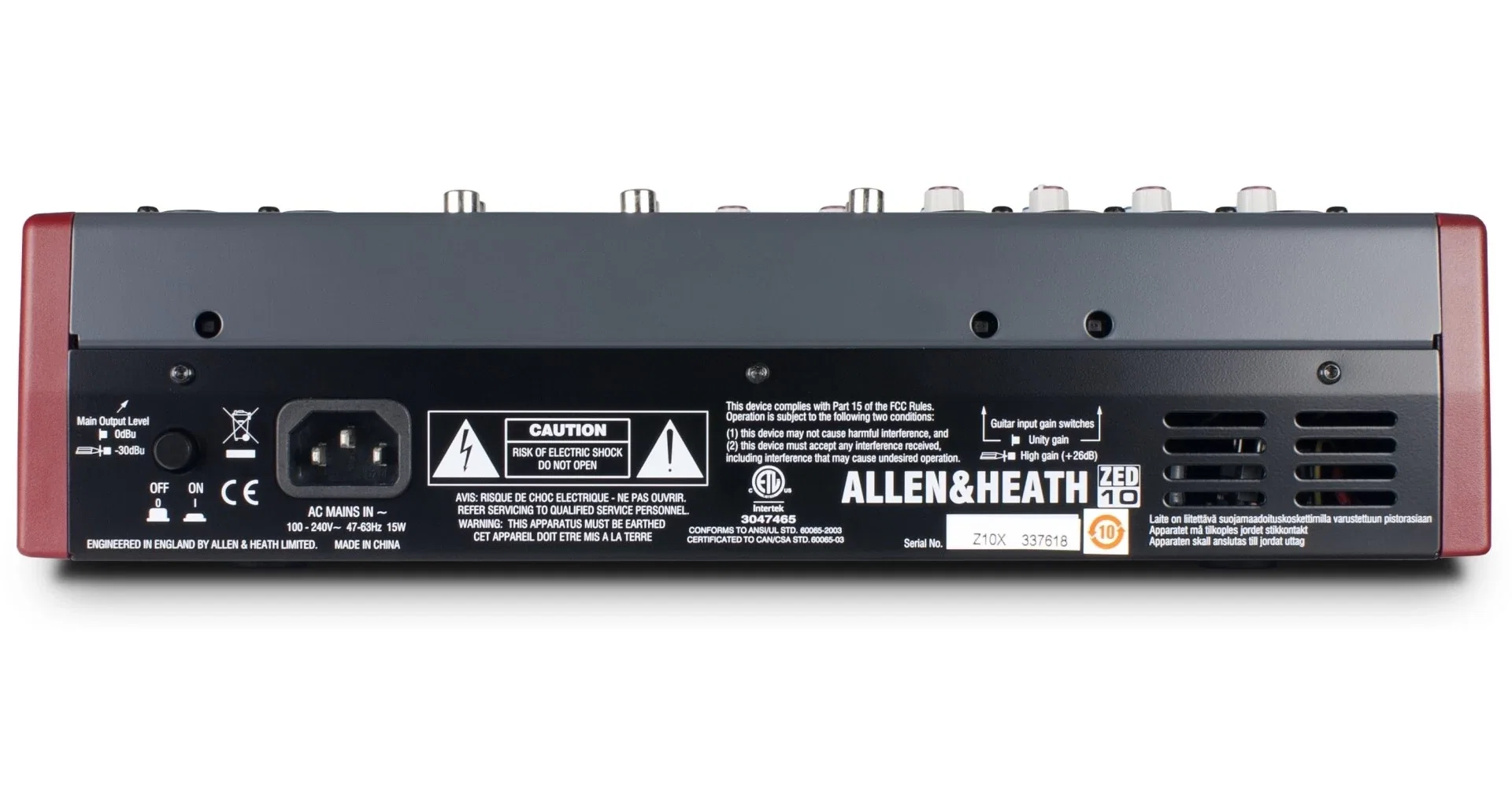

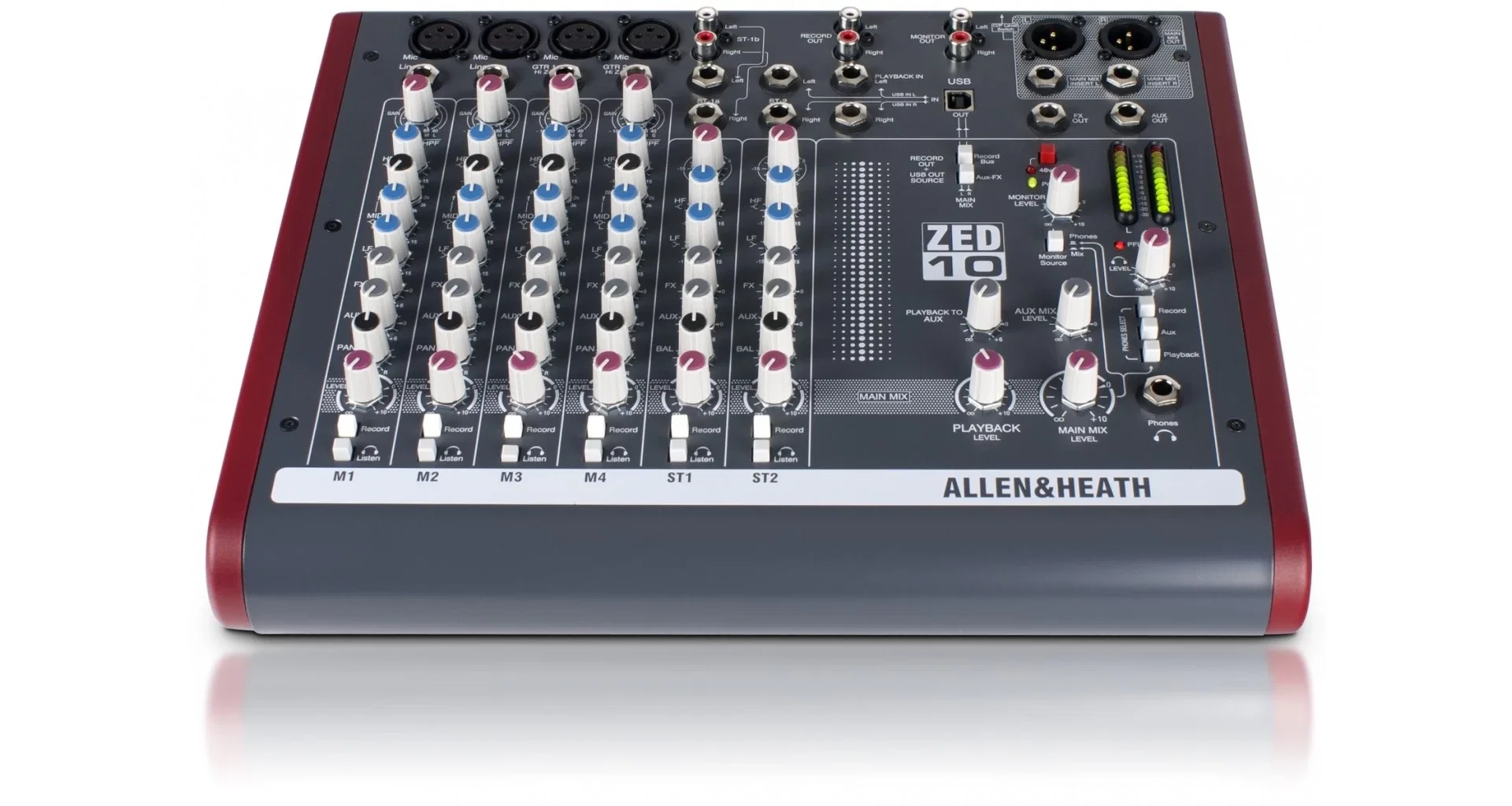

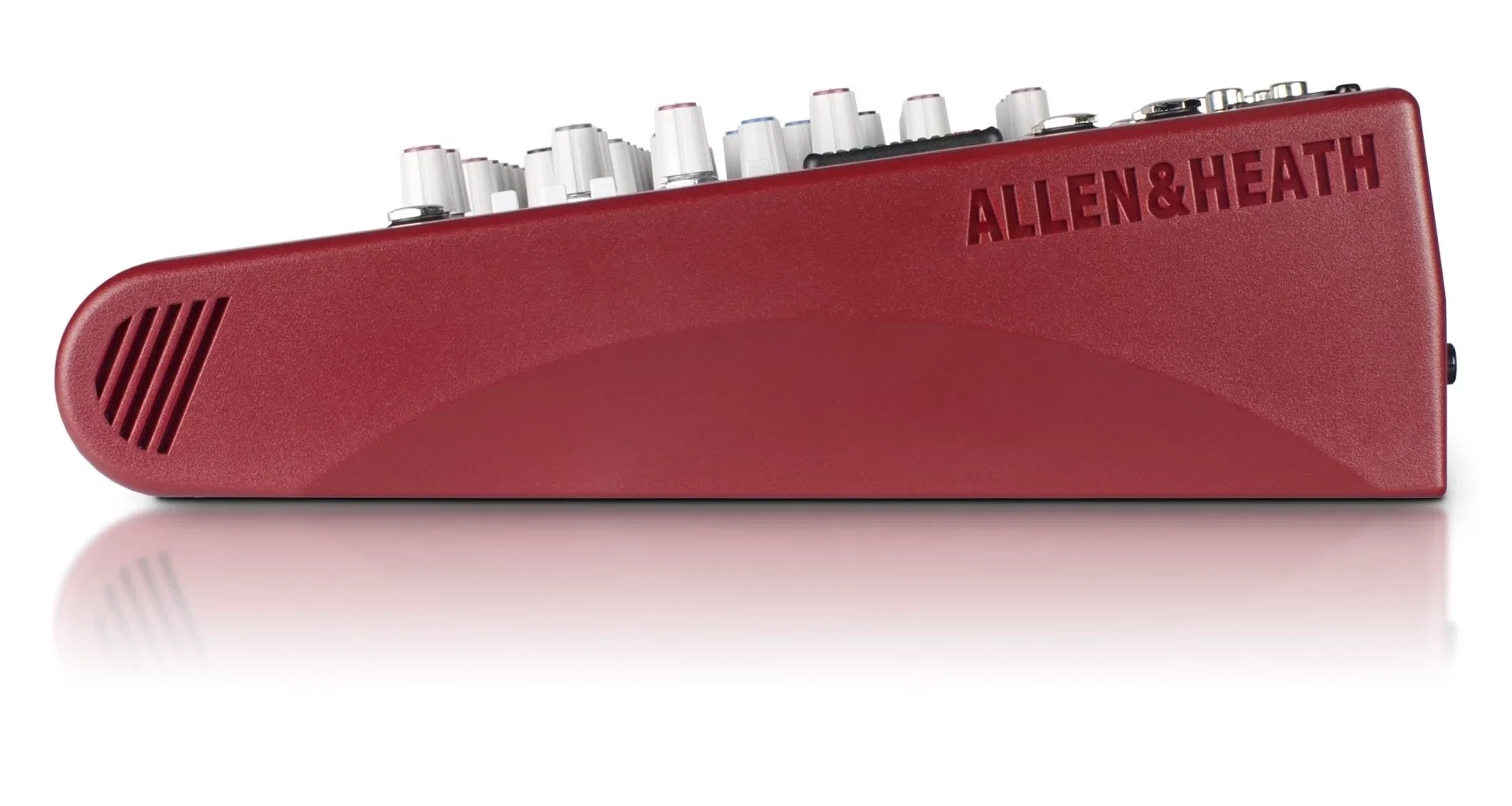

Allen & Heath ZED-10

Allen & Heath ZED-10:

Acesta dispune de 10 intrari, 4 intrari pentru microfon/linie cu preamplificare si phantom power, 2 intrari stereo pentru instrumente muzicale sau dispozitive audio externe si o intrare stereo pentru playback de la un laptop sau un alt dispozitiv de redare.

ZED-10 are, de asemenea, doua iesiri auxiliare, o iesire pentru casti si o interfata USB pentru a inregistra direct pe PC.

Specificatii tehnice:

Intrare
Intrare canal mono (XLR) -10 pana la -60dBu nominal (+11dBu in max)
Intrare linie canal mono (mufa Jack) +10 pana la -40dBu (+31dBu maxim)
Intrare stereo (Jack sau Phono) nominala 0dBu (control = Dezactivat la +15dB)

Iesire
Iesiri L/R (XLR) Normal/DI out 0dBu/-30dBu +21dBu/-9dBu maxim
Aux & FX Iesiri (prize Jack) 0dBu nominal +21dBu maxim
Record & Monitor Iesiri (Phono) 0dBu nominal +21dBu maxim

Raspuns in frecventa
Mic in to Mix L / R Out, 30dB gain +0.5/-1dB 10Hz la 30kHz.
Line in to Mix L / R afara 0dB gain +0.5/-1dB 10Hz la 25kHz
IStereo in to Mix L/R +0.5/-1dB 10Hz la 30kHz

THD+n
Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out 0.002%
Mic in to Mix L/R Out, 30dB gain 1kHz 0.01%
Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.003%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.002%
Gtr Input to Mix L/R Out, 0dBu, Boost OUT 0.015%
Gtr Input to Mix L/R Out, 0dBu, Boost IN 2% Second Harmonic

Headroom
Headroom analog nominal (0Vu) 21dB
Headroom USB in & out nominal (0Vu) 14dB

Zgomot:
Mic Pre EIN @ max gain 150R intrare Z 22-22kHz -127dBu
Iesire Mix L/R, L/R faders = 0, Levels min, 22-22kHz -96dBu
Iesire Mix L/R, L/R faders = 0, Levels min, 22-22kHz -96dBu

USB Audio CODEC (Coder/Decoder)
USB Audio In/Out: USB 1.1 compliant 16bit.
Rate de esantionare: 32, 44.1, or 48kHz

Dimensiuni: 336 x 95 x 275 mm
Greutate: 3.3 kg
