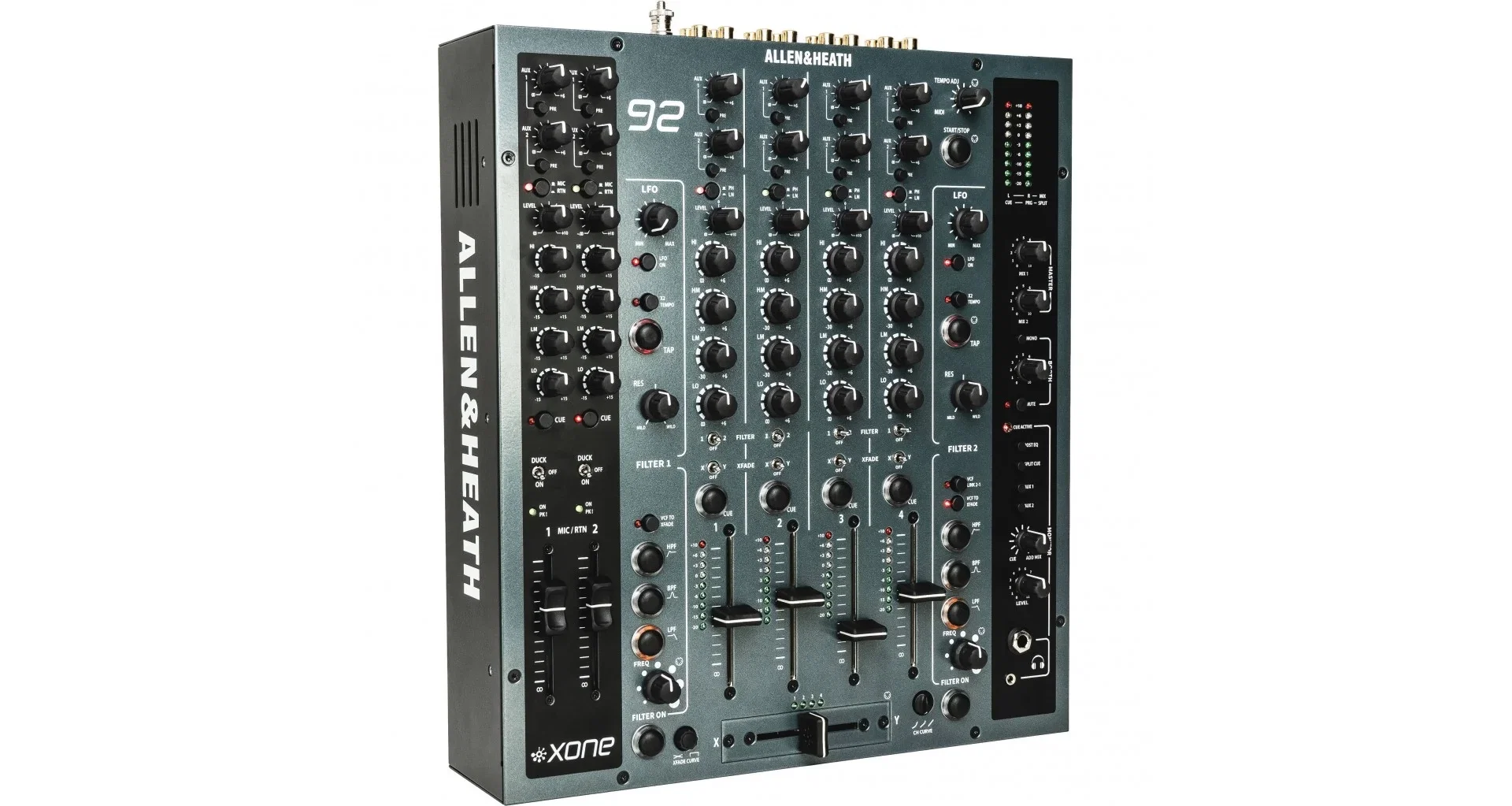

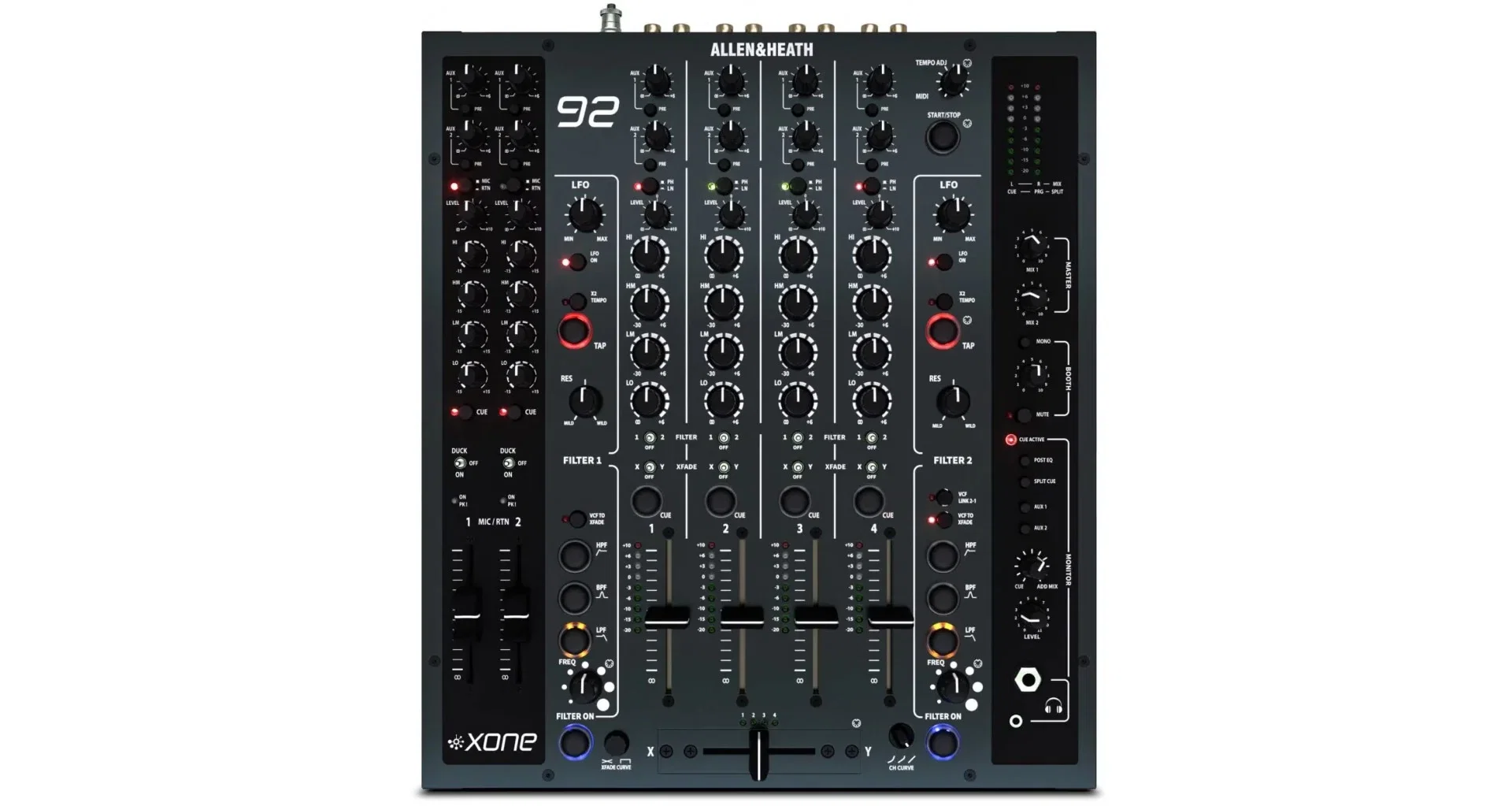

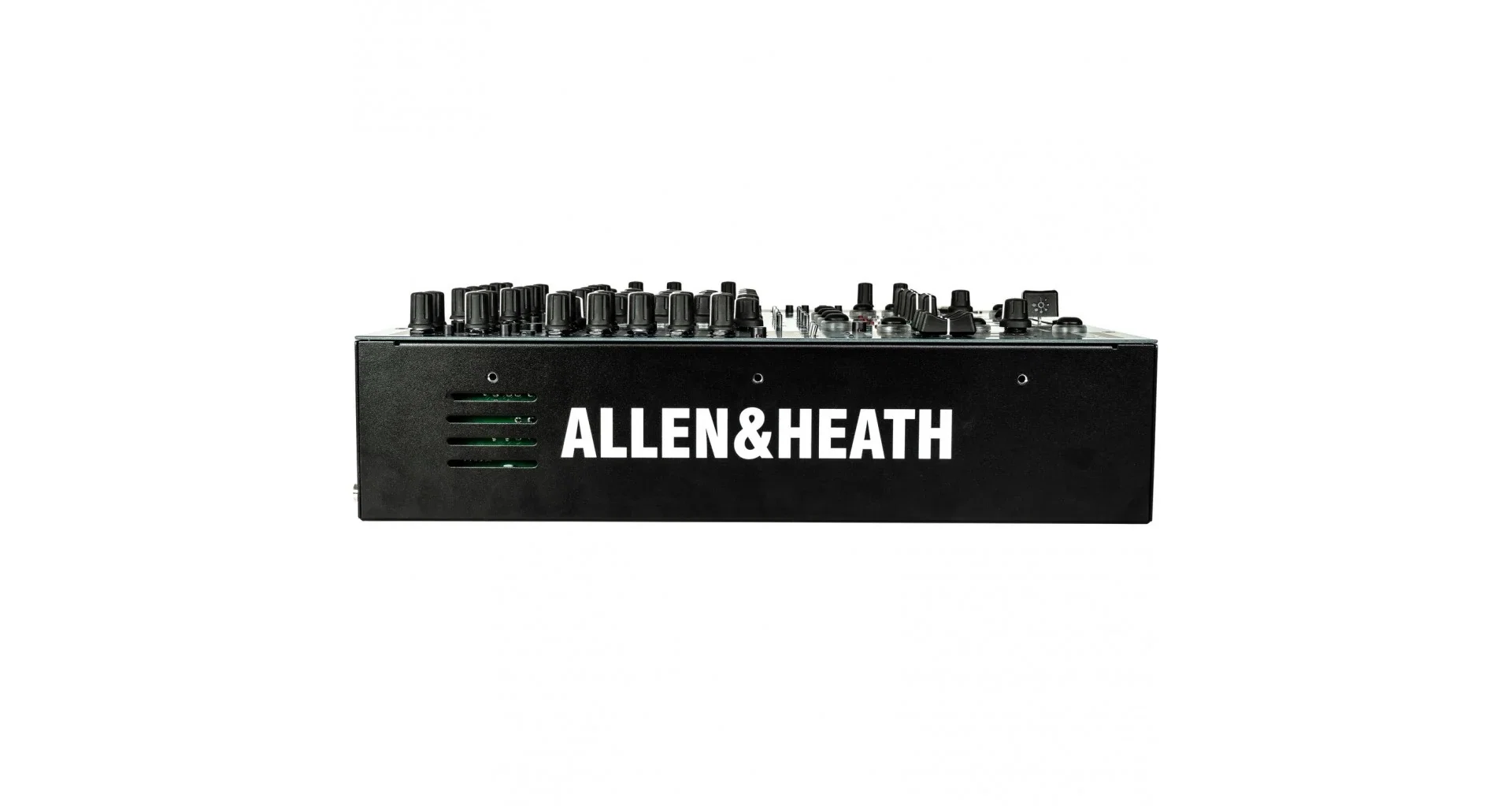

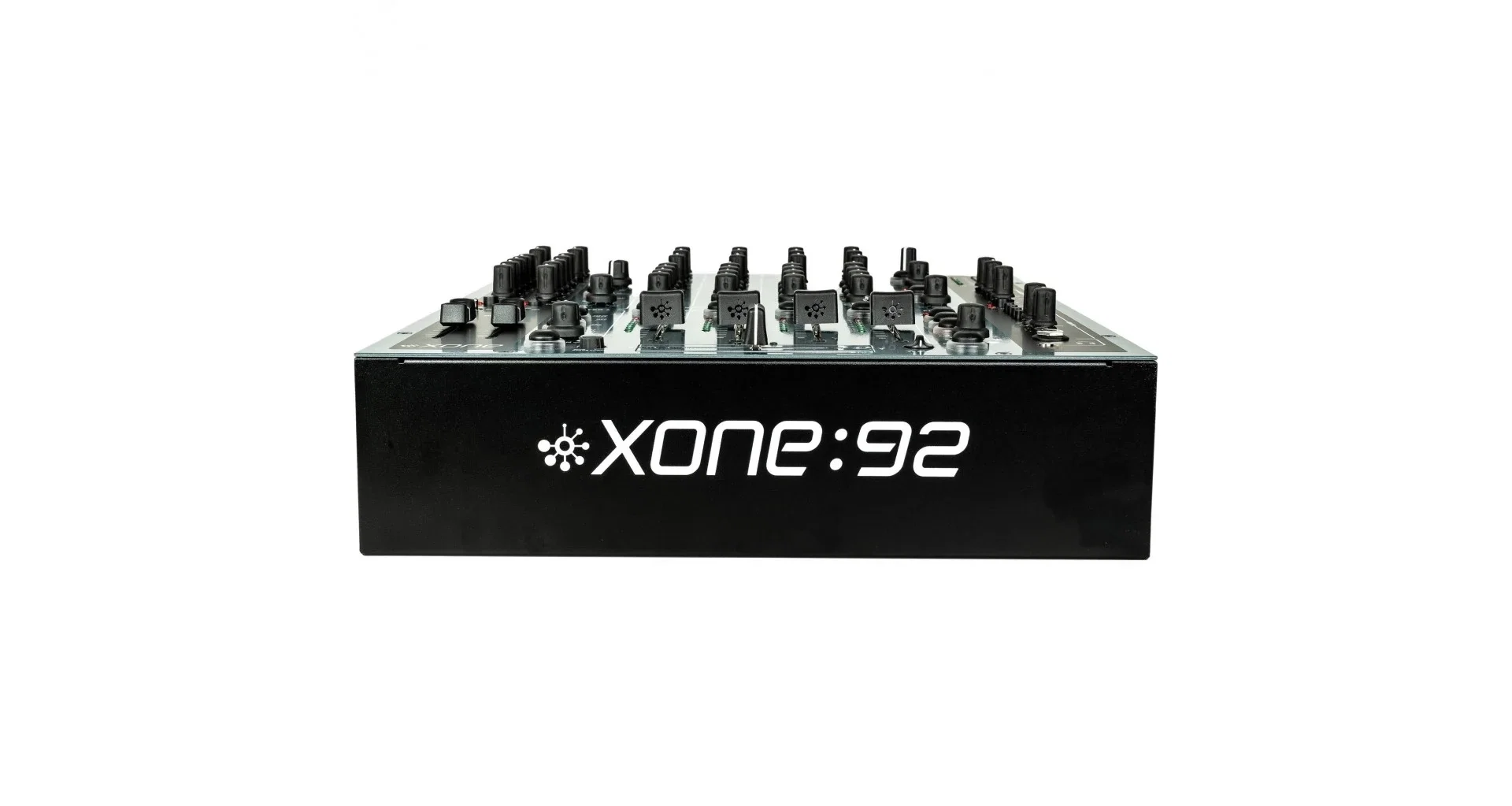

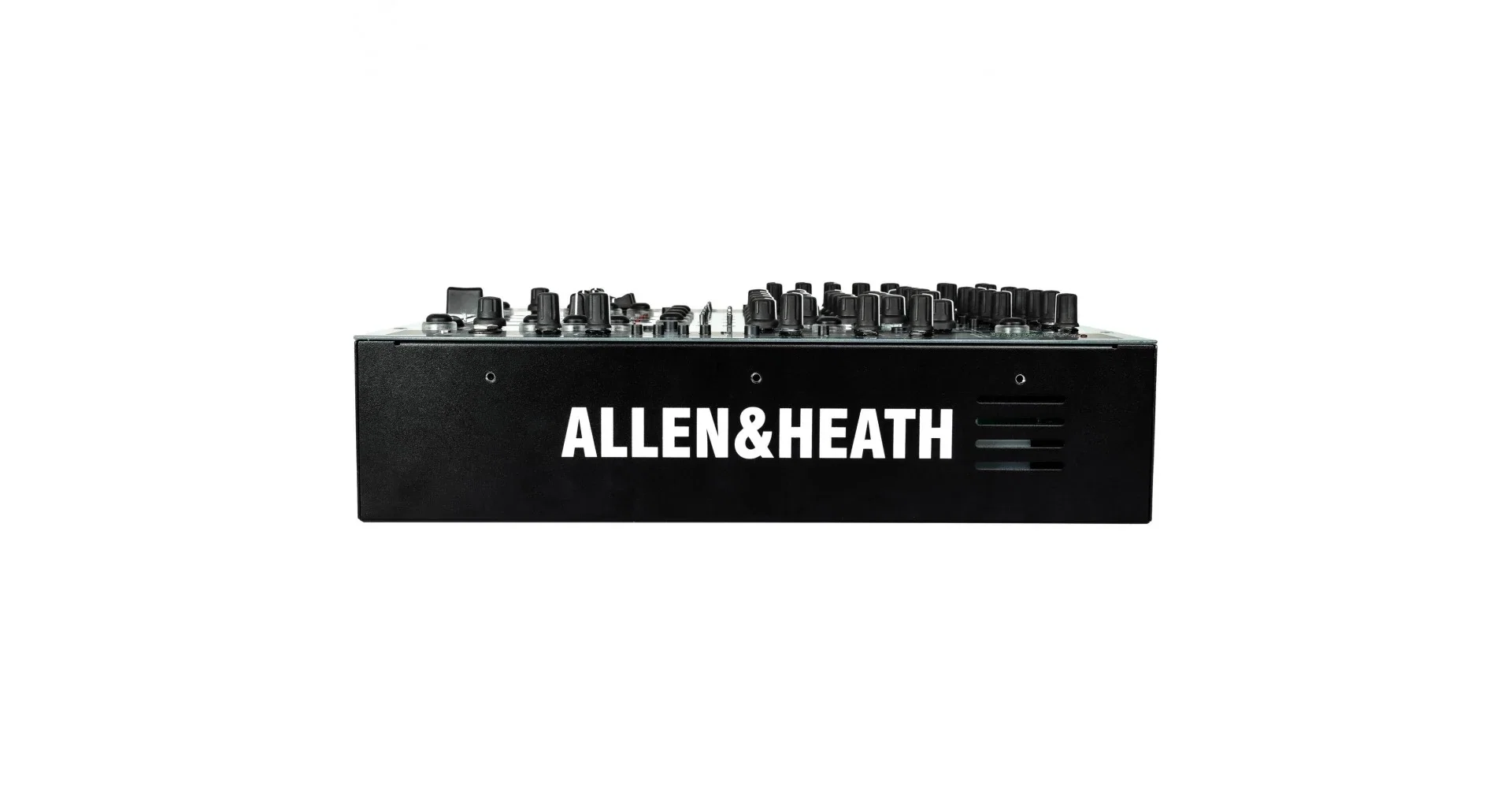

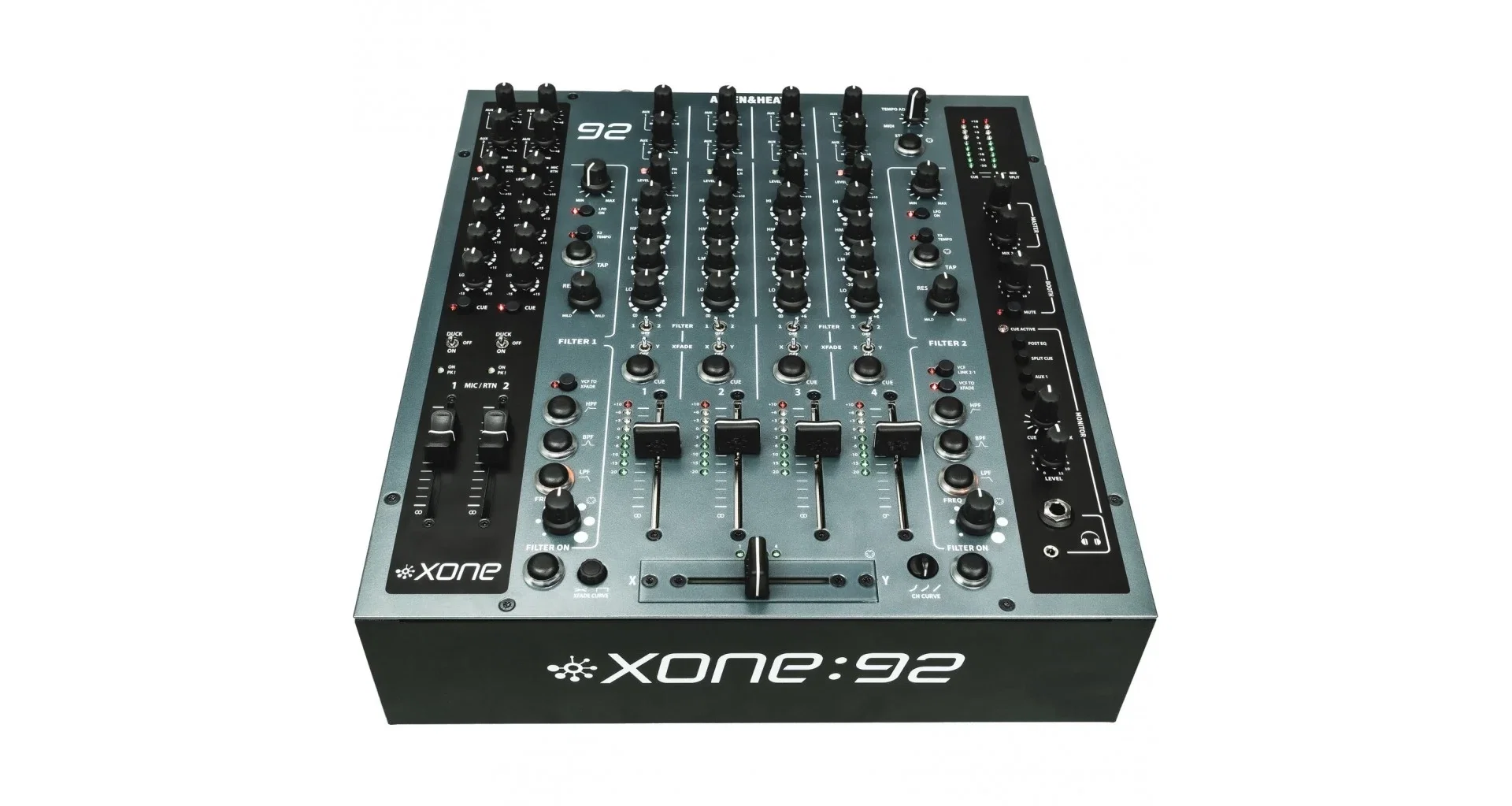

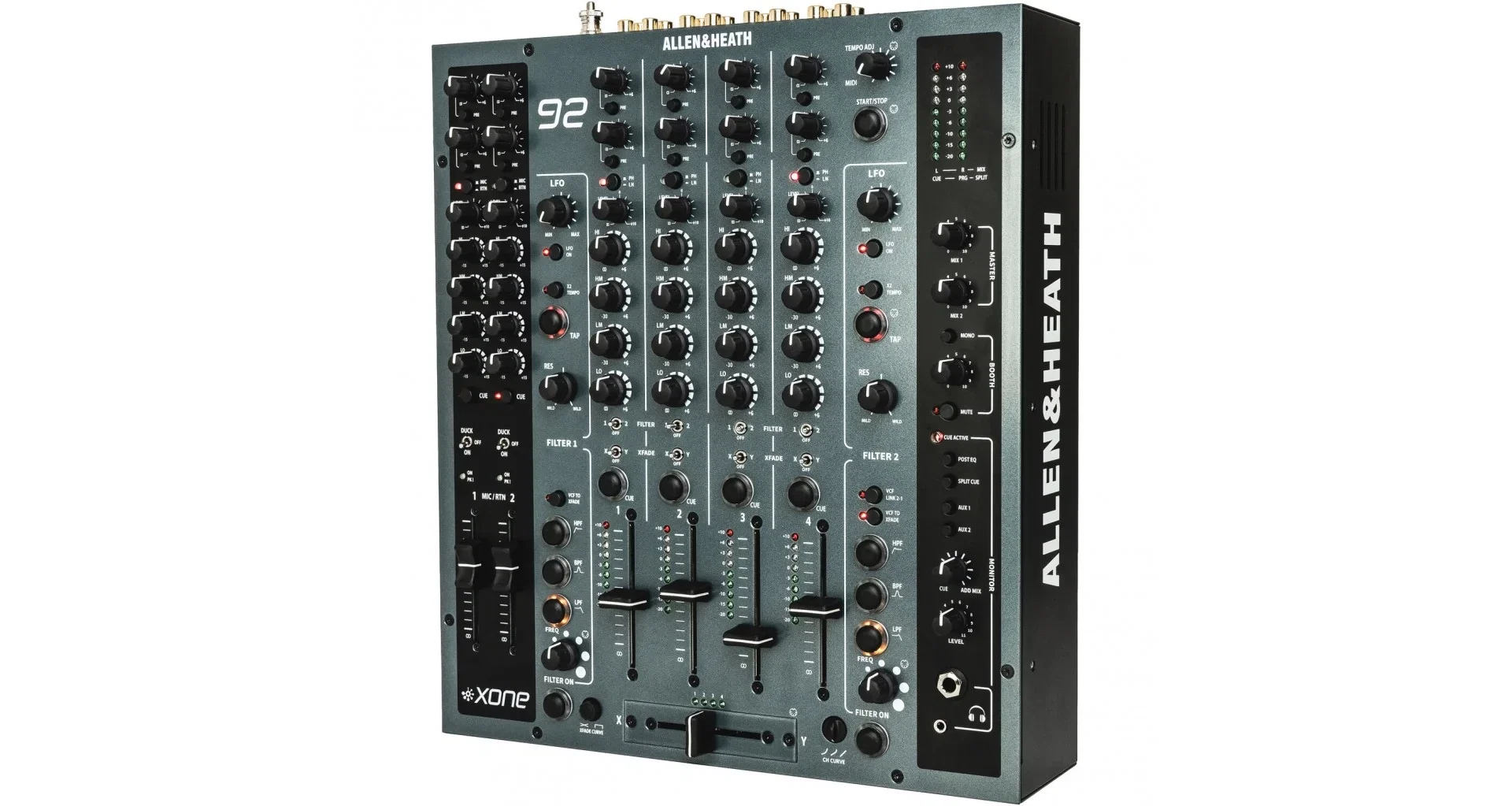

Allen & Heath Xone:92 MK2

Allen & Heath Xone:92 MK2:

Specificatii tehnice:

• Tip: Analog
• Canale: 6 + 2
• EQ: 4 benzi: CH 1-4, MIC/RTN 1, MIC/RTN 2, Booth Stereo/Mono, Mute, Nivel
• Intrari phono: 4 x RCA (CH 1-4)
• Terminale de impamantare: 1 + 2 (Adaptor terminal dual)

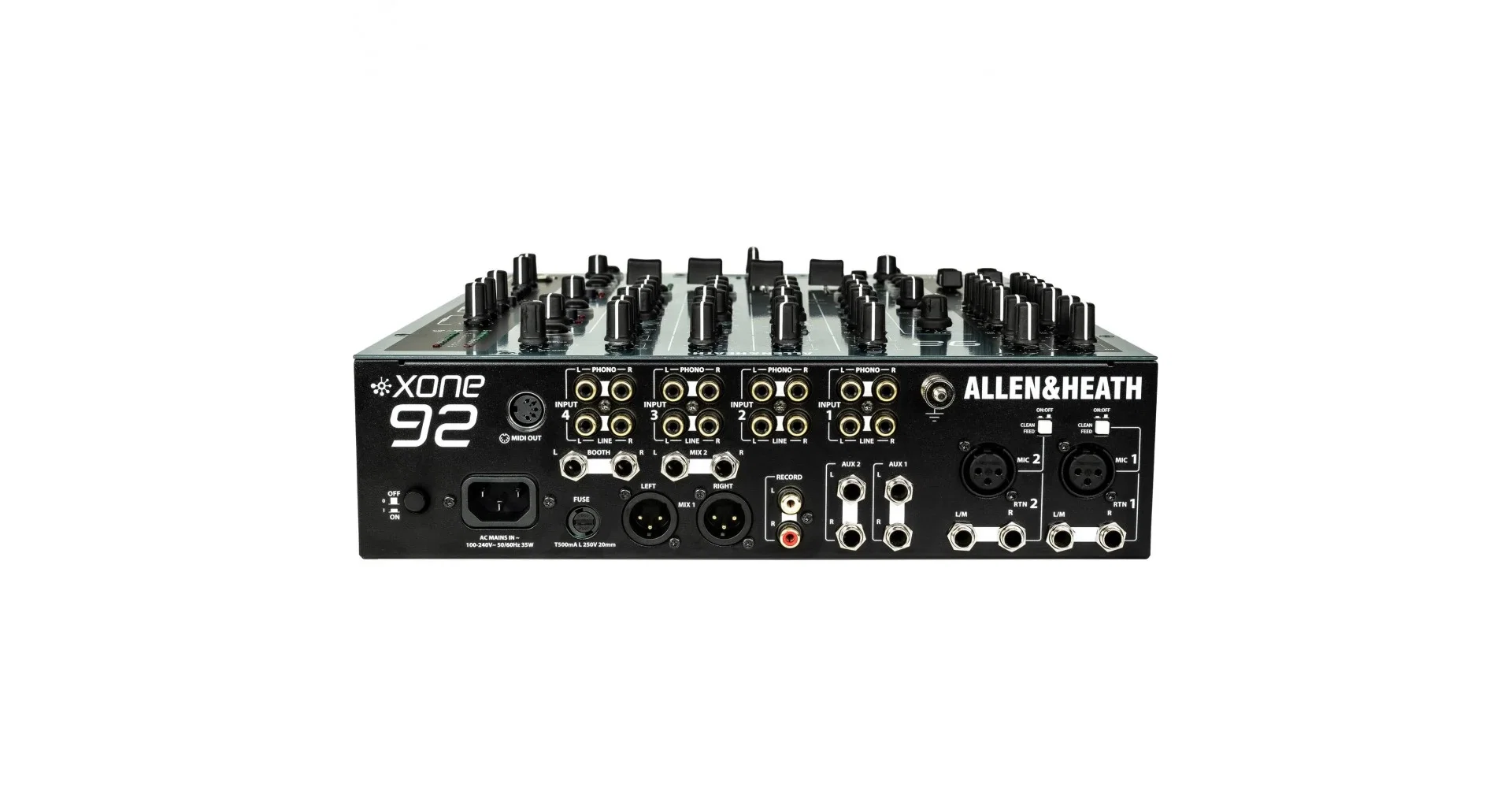

Intrari linie stereo:

• 4 x RCA (CH 1-4), 2 x TRS 1/4” (RTN 1, RTN 2, Mono/Stereo)
• Intrari microfon: 2 x XLR (MIC 1, MIC 2)
• Iesire MIX 1: 1 x XLR (Balanced)
• Iesire MIX 2: 1 x TRS 1/4” (Unbalanced)
• Iesire Booth: 1 x TRS 1/4” (Unbalanced)
• Iesire Record: 1 x RCA (Unbalanced)

• Send/Return stereo: 2 x TRS 1/4” AUX1, AUX2 (Mono/Stereo); 2 x TRS 1/4” RTN 1, RTN 2 (Mono/Stereo)
• Aux Sends: 2 x CH 1-4, MIC/RTN 1, MIC/RTN 2 (Pre/Post selectabil)
• Filtre: 2 filtre analogice stereo controlate prin tensiune; HPF/BPF/LPF cu selectie de raspuns, ON/OFF (soft switched), FREC/RES/LFO ajustabil, asignabile pe CH 1-4
• Fadere canal 1-4: 60 mm control VCA, shutoff < -82 dB @ 1 kHz +10 dBu, curbe comutabile 3-ways
• Crossfader: innoFADER Pro mini de 45 mm VCA, curbe ajustabile rotativ, inlocuibil
• MIDI: MIDI CC si Note ON/OFF asignabil, iesire 1 x DIN 5-pin
• Alimentare: Unitate interna SMPS cu detectie automata; AC 100-240V, 50/60Hz, max 30W, adaptor de retea 3 pin IEC
• Niveluri iesire: MIX 1 +4 dBu (nominal) / +25 dBu (max), MIX 2 +6 dBu / +21 dBu, Booth +8 dBu / +21 dBu, Record -10 dBu / +12 dBu
• Headroom intern: +22 dB pe canale
• Raspuns in frecventa: LINE IN la MST out +1/-0,5 dB de la 20 Hz la 30 kHz
• Distorsiune: 0.01% @ 1 kHz 0 dBu (THD+Noise 22 Hz - 22 kHz)
• Crosstalk: < -90 dB intre canale @ 1 kHz +10 dBu

Zgomot rezidual:

• MASTER 1 -85 dBu
• MASTER 2 -85 dBu
• Booth -85 dBu

Zgomot mix:

• MASTER 1 -81 dBu
• MASTER 2 -81 dBu
• Booth -81 dBu
• Record RCA -90 dBu

• Gain microfon: +30 dB, EIN = -126 dB (40 dB gain, sursa 150R)
• Gain RIAA: +35 dB @ 1 kHz (14 mV RMS = 0VU @ 1 kHz)
• Meter pe canale: 9 LED-uri, -20 dBu la +10 dBu
• Meter principal: 9 LED-uri, -20 dBu la +10 dBu

EQ canale MIC/RTN:

• HI 12 kHz ±15 dB
• HM 2.7 kHz ±15 dB
• LM 270 Hz ±15 dB
• LO 60 Hz ±15 dB

EQ canale 1-4:

• HI 2.4 kHz +6/-∞ dB
• HM 1.8 kHz +6/-30 dB
• LM 320 Hz +6/-30 dB
• LO 220 Hz +6/-∞ dB
